60W Full-Spectrum LED Grow Light Module with Samsung LM301H + Osram 660nm
Product Overview
The 60W Linear LED Grow Light Module is engineered for high-efficiency horticulture lighting. By combining Samsung LM301H white diodes with Osram 660nm deep-red LEDs, the module supports strong photosynthetic response across key growth stages.
Its 570×30×1.6mm form factor makes it easy to integrate into standard bar-style fixtures, retrofit housings, and multi-bar lighting arrays. The module is preset for 48V 1.25A constant-current operation, simplifying driver selection and system integration.
Key Features
96× Samsung LM301H white LEDs for high-efficiency broad-spectrum output
16× Osram 660nm deep-red LEDs to support flowering and biomass development
60W total power, preset for 48V / 1.25A constant-current input
570×30×1.6mm linear PCB for compact fixture integration
Full-spectrum design suitable for seedling, vegetative, and flowering stages
Aluminum-core PCB for improved heat dissipation and long-term reliability
OEM/ODM support for spectrum, size, voltage, connector, and layout customization
Suitable for indoor grow tents, greenhouses, vertical farms, and hydroponic systems

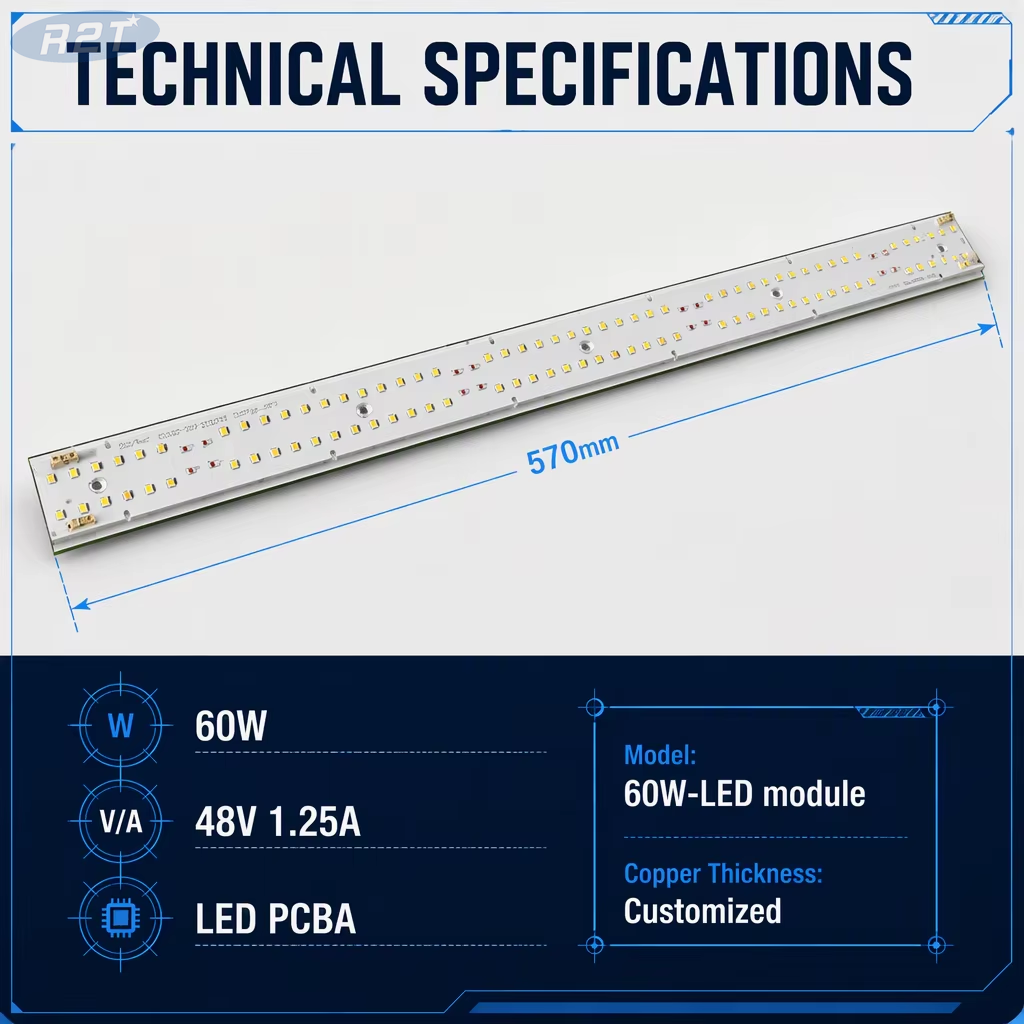

Technical Specifications
Specification Detail
Specification Detail
Product Type Linear LED Grow Light Module / Horticulture PCBA
Total Power 60W
Input 48V DC, 1.25A constant current
PCB Size 570 × 30 × 1.6 mm
White LEDs 96× Samsung LM301H
Red LEDs 16× Osram 660nm
Total LED Count 112
Spectrum Full Spectrum with 660nm Deep Red
PCB Type Aluminum-core MCPCB
Typical Applications Indoor farming, greenhouse, grow tent, vertical farming
Customization Spectrum, size, voltage, connectors, layout, branding
Final PPFD, PPE, and coverage data depend on driver configuration, optics, mounting height, and fixture design.
Spectrum & Performance Notes
This module uses a white + deep-red spectrum architecture. The Samsung LM301H diodes provide broad-spectrum white light, while the Osram 660nm diodes strengthen the red peak commonly associated with photosynthesis and flowering performance.
Because PPFD and PPE values depend on the complete fixture, we recommend testing the module with your chosen driver, lens, reflector, and mounting height. R2T Industry can support spectrum validation, thermal layout review, and PCBA customization based on your target crop and fixture design.
Ideal Applications

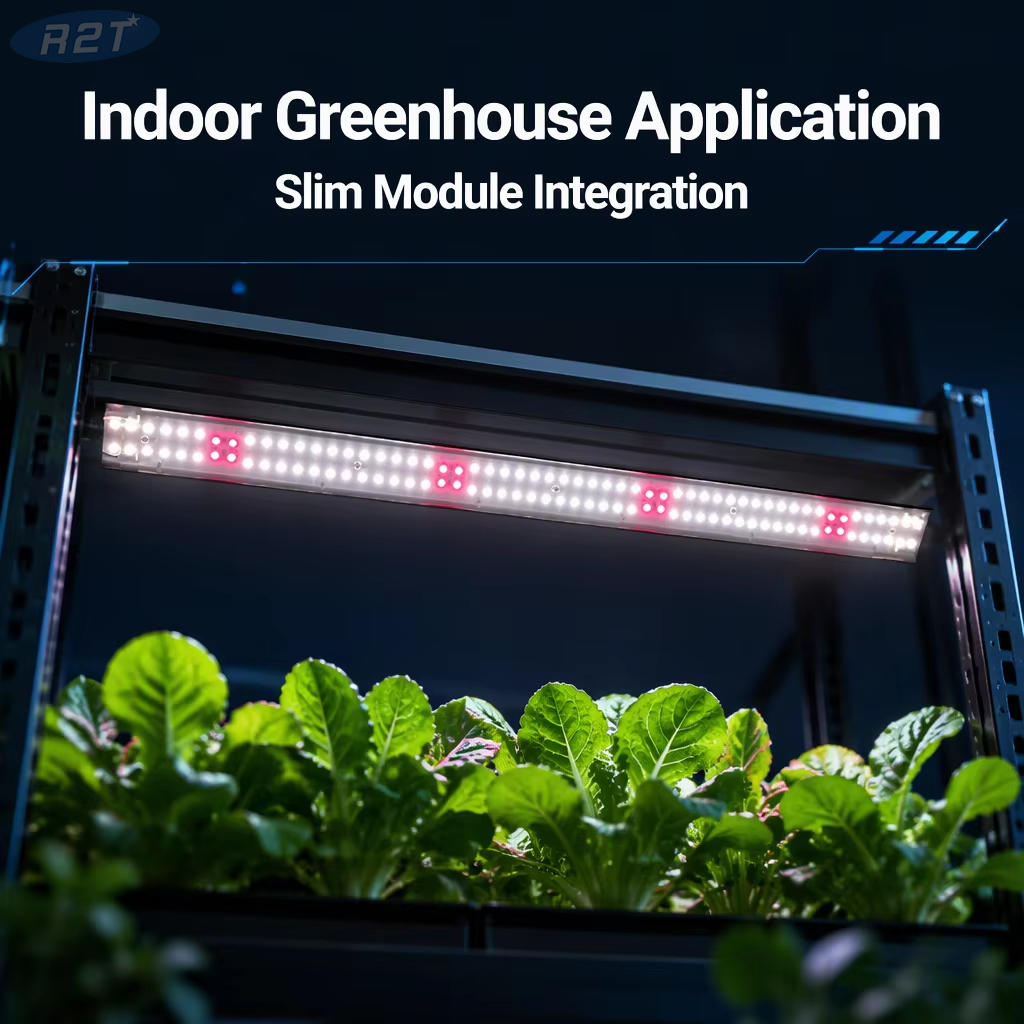

Indoor grow tents requiring compact, high-efficiency light bars
Commercial greenhouses using modular LED fixtures
Vertical farming racks needing uniform linear illumination
Hydroponic and controlled-environment agriculture systems
LED grow light brands seeking OEM/ODM PCBA modules
OEM / ODM Support
R2T Industry supports customization for lighting brands, system integrators, and agricultural technology companies.
Available customization options include:
LED spectrum ratio adjustment
PCB length, width, and thickness
Input voltage and current configuration
Connector type and wiring layout
Dimming compatibility review
Thermal design optimization
Private labeling and packaging support
Why Choose R2T Industry
Component-grade transparency: Clear LED brand and configuration disclosure
Horticulture-focused PCBA: Designed for thermal stability and manufacturing consistency
Factory-level flexibility: Support for small batches, prototypes, and mass production
Integration-ready: Designed for constant-current LED drivers and standard fixture layouts
B2B manufacturing partner: Suitable for brands, distributors, and agricultural equipment makers
Frequently Asked Questions
Q1: What is the input voltage of this LED grow light module?
A: The module is preset for 48V DC, 1.25A constant-current input. Please confirm compatibility with your LED driver before integration.
Q2: Which LEDs are used on this module?
A: It uses 96× Samsung LM301H white LEDs and 16× Osram 660nm deep-red LEDs.
Q3: What is the total power rating?
A: The module is rated at 60W under its designed operating conditions.
Q4: What are the PCB dimensions?
A: The PCB size is 570 × 30 × 1.6 mm.
Q5: Is this module suitable for all growth stages?
A: Yes. Its full-spectrum design with added 660nm red light is suitable for vegetative growth, flowering, and fruiting. Actual performance depends on fixture design, mounting height, and photoperiod.
Q6: Can you customize the spectrum or size?
A: Yes. We support OEM/ODM customization for spectrum ratio, PCB dimensions, voltage, connectors, and layout.
Q7: Do you provide drivers with this module?
A: This product is sold as an LED module/PCBA. Driver selection should be matched to your fixture design. We can recommend compatible constant-current driver specifications upon request.
Q8: What is the typical lead time?
A: Lead time depends on quantity, customization requirements, and inventory. Please contact our sales team for a current quotation and production schedule.
H2: Request a Quote
If you are developing a new LED grow light or upgrading an existing fixture, contact R2T Industry with your target power, spectrum, voltage, and quantity. We can provide module specifications, integration recommendations, and OEM/ODM quotations.
