Power Your Lighting Projects with R2T Industry's Premium LED Aluminum PCBs
Are you looking for a reliable thermal solution for high-power LED lighting? At R2T Industry, we specialize in manufacturing high-quality, custom-designed Metal Core PCBs (MCPCB) tailored for the demanding lighting industry.

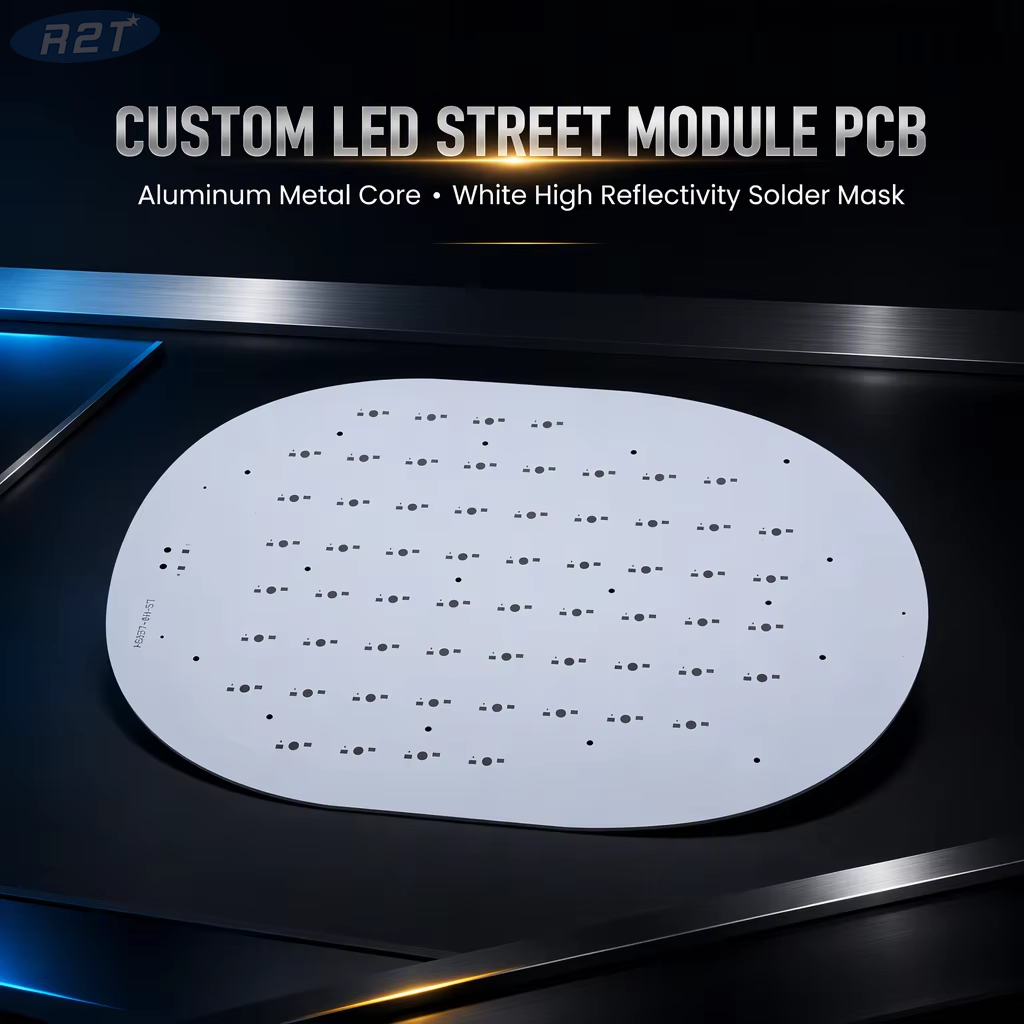

Featured here is our latest Custom 60-LED Street Light Board, engineered specifically for high-lumen applications such as street lights, flood lights, and high bay lighting.
Why Choose This LED Aluminum PCB?
1. Optimized for High Power (180W)
This board is layout-designed to accommodate 60 pieces of emulator flux LED beads. With a maximum power rating of 180W, it delivers intense brightness required for industrial and outdoor lighting. The circuit design ensures stable current flow across all 60 points.
2. Exceptional Heat Dissipation

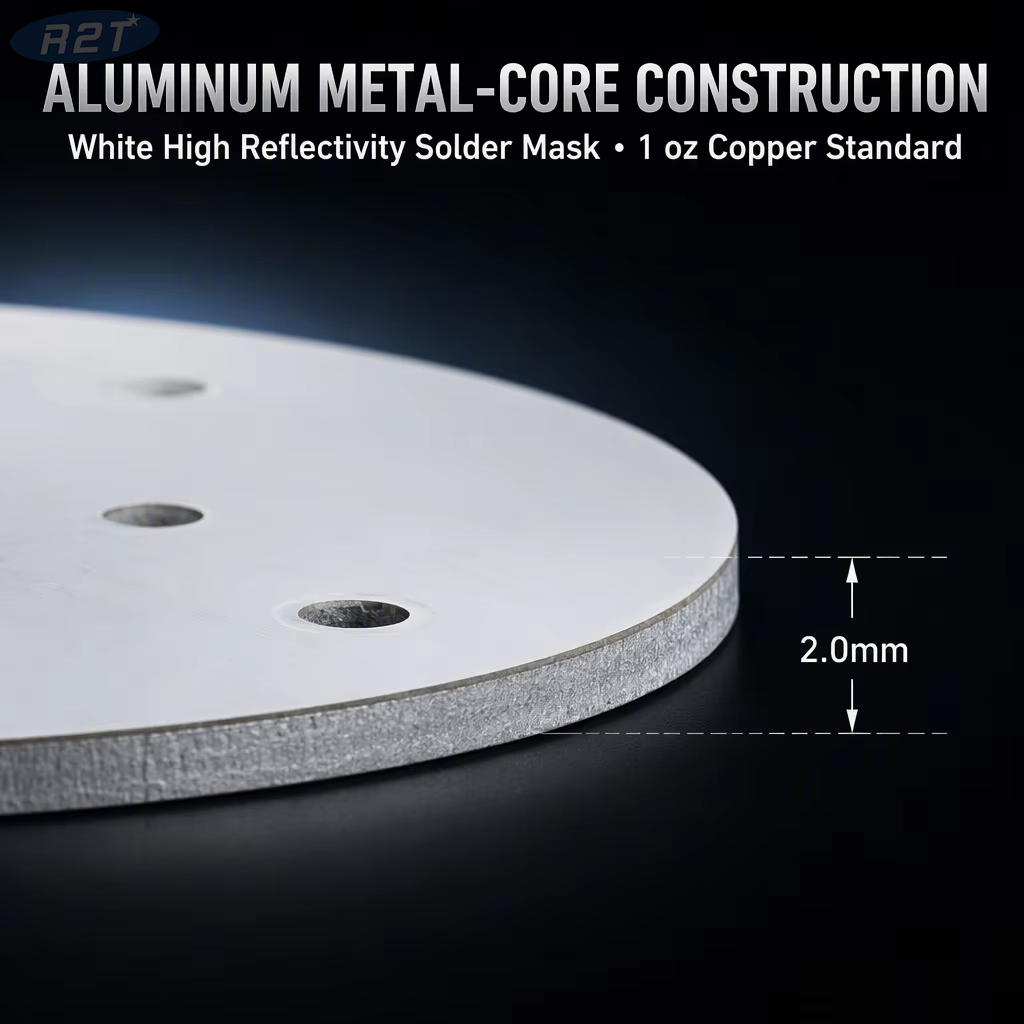

Heat is the enemy of LED lifespan. Our board utilizes a 2.0mm thick aluminum base with a thermal conductivity of 1.0 W/m.k. Combined with 1oz copper thickness, it rapidly transfers heat away from the LED junction to the heatsink, ensuring your lights run cooler and last longer.
3. Reliable Surface Treatment
We use HASL (Hot Air Solder Leveling) surface finish. This provides a flat, solderable surface that protects the copper circuits from oxidation and ensures a strong mechanical bond during the assembly process.
4. Unlimited Customization Potential
No project is too big or too small. While this specific model is optimized for street lights, our manufacturing capabilities allow for:
Max Panel Size: Up to 1.2m x 0.6m (perfect for large linear lights or multi-board panels).
Custom Shapes: Circular, rectangular, or irregular shapes to fit your housing.
Thermal Upgrades: Available in 1.5, 2.0, or 3.0 W/m.k thermal conductivity upon request.

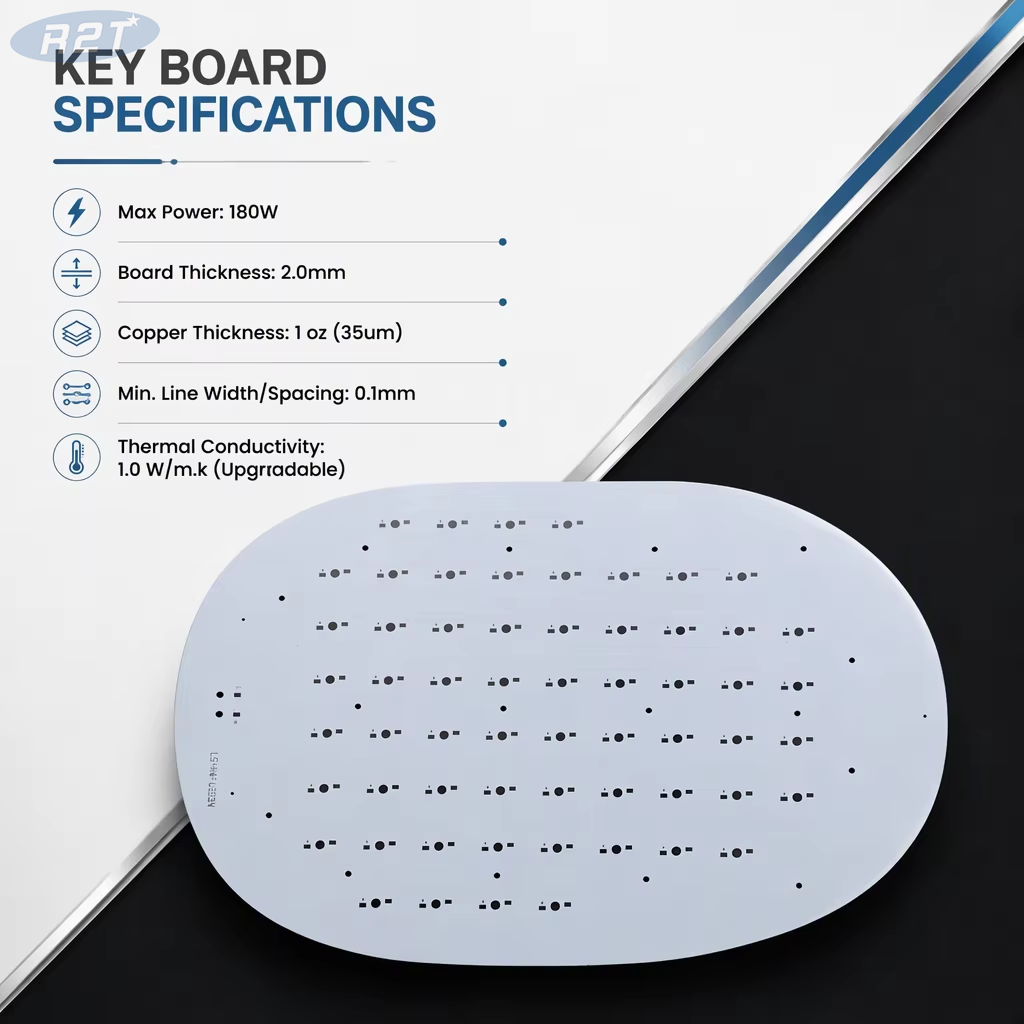

Technical Specifications
Parameter Specification
Base Material Aluminum (Metal Core)
Board Thickness 2.0 mm
Copper Thickness 1 oz (35um)
Thermal Conductivity 1.0 W/m.k (Upgradeable)
Surface Finish HASL (Lead-Free) / ENIG Optional
Solder Mask Color White (High Reflectivity)
Application 60pcs Emulator Flux LEDs
Max Power 180 Watts
Max Manufacturing Size 1200mm x 600mm
Our Services: From PCB to PCBA
At R2T Industry, we don't just sell boards; we provide solutions.

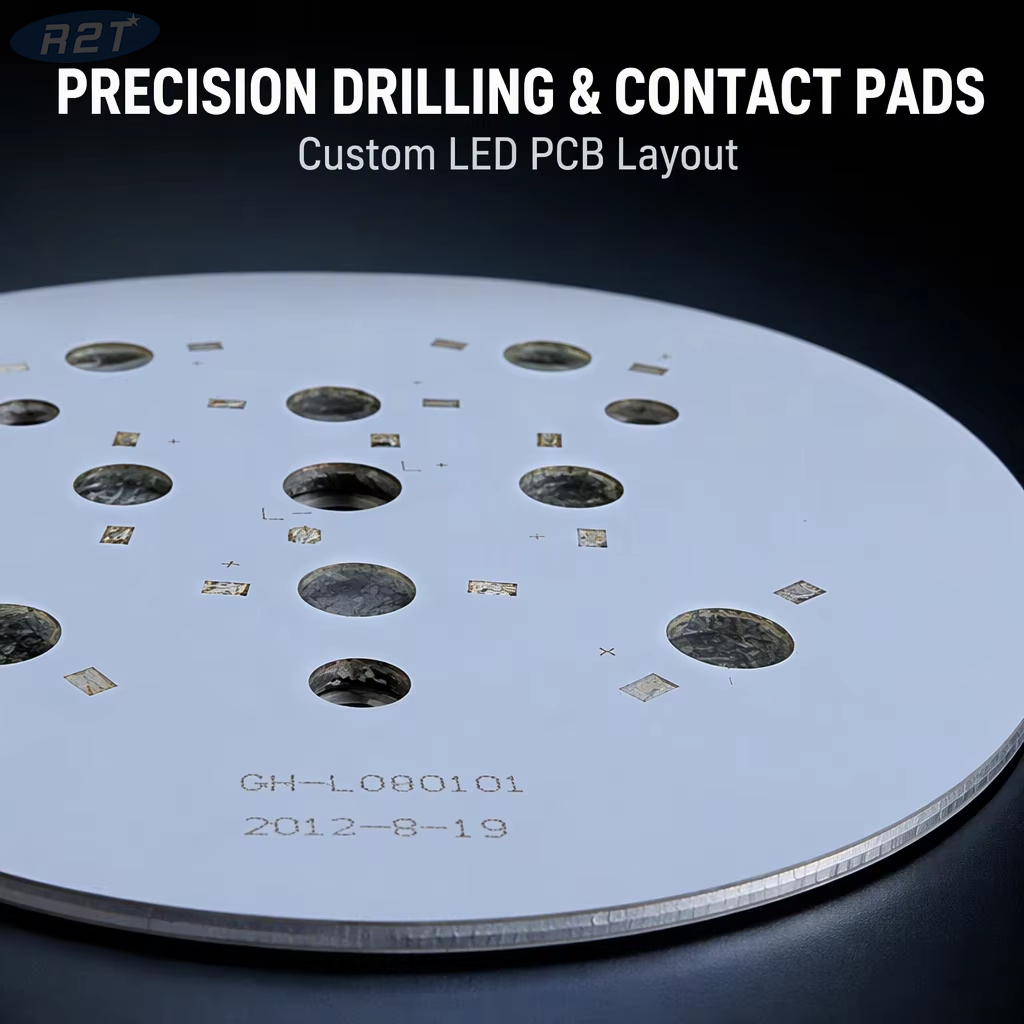

PCB Fabrication: Precision etching and drilling for perfect pad alignment.
PCBA Assembly: We offer full turnkey assembly services. Send us your Gerber files and BOM (Bill of Materials), and we can populate the board with LEDs and components for you.
R&D Support: Our engineering team can help optimize your circuit design for better thermal performance before production.
Applications:
LED Street Lights & Highway Lighting
LED Flood Lights & Spotlights
High Bay & Low Bay Industrial Lighting
UV Curing Systems
Contact Us for a Quote
Ready to upgrade your lighting fixtures? Whether you need a prototype of this 180W street light board or a mass production run of custom large-size panels, we are here to help.
