Full Spectrum 600W LED Grow Light with Quantum Board 288x Samsung Lm301B +8 x XPE2 660nm for Hydroponic System Growing

600W led grow light combo kit, 6in1 ,288x Samsung LM301B SK/SL bin, 3000k/3500k/4000k + 8pcs Cree XPE2 660nm chips. Meanwell driver: HLG-600H-54B,Dimmer is include
Quantity:
  • R2T720-6in1 288+8V2+LED Grow Light
  • R2T

Full Spectrum 600W LED Grow Light with Quantum Board 288x Samsung Lm301B +8 x XPE2 660nm for Hydroponic System Growing

Specifications of products



1. 288+8LEDs Board, Al, Board Spec.: 173.6*285.8*2mm, HASL, 1oz,2.0w/m.k,288pcs Samsung LM301B SK/SL,CRI:80,CCT Option: 3000k/3500k/4000k/5000k/6500k,18in parallel 16 in series,8pcs Cree XPE2 660nm, Input: 46.8~58V/1700mA ,with 4pcs single pin connectors, With high Par(umol/m2/s)  & easy installment for Horiculture planting;

2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;

3.Samsung LM301B RA:80, CCT option: 3000k/3500k/4000k/5000k/6500k+Cree XPE2660nm(351H-660nm or 351HV2-660nm);

4.Customize wattages,chips ratio,logo, package available.

Initiator:

 Russell

Date:

2017-7-17

Project Name:

600W LED boards

New Project Code:

R2T-QB288led boards

Function Request

Electronic Requirement):

6in 1 QB288V2+ comob kit,Single Baord Sepc 173.6*285.8*2mm, HASL, 1oz,2.0w/m.k,288pcs Samsung561b ,8in parallel 38 in series add 4in parallel 2in series XPE660nm chips,46.8~58V/2000mA(Max), match Driver: Meanwell driver: HLG-600H-54B

Optic Requirement:

Single boards: 288pcs chips, Samsung LM301B,3000Kevin,RA:80,SK ,16 in parallel 18 in series4pcs single pin molex connectors plus 8pcs Cree XPE 660nm,

Mechanical & Outline Request

Circuit Board Requirement:

N.Layer:

Single side LAYER

substrate:

Aluminum

Board thickness:

2.0mm

Copper thickness:

1oz

Finishing:

HASL

Solder Mask:

White

silkscreen:

Black

Panel

No request

Special Requirement

2.0w/m.K thermal conductivity

Silkscreen Design:

Black words

Location hole:

Size:

M3*8

location

N/A

Others


Components List

Name Qty
288+8LEDs V2 Plus board 6pcs
Power supply HLG-600H-54B 1pcs
240Watt 6061 Al Heatsink  3pcs
Dimmer 1pcs
Leadframe+Hanging kits 1set
Wago Connectors 5pcs
Plug wire 30cm 12pcs
Wire cable 1meter(US, EU, AU etc) 1pcs



Hydroponinc indoor horticultural grow system 600W dimmable grow led lights HPS grow light

Hydroponinc indoor horticultural grow system 600W dimmable grow led lights HPS grow light

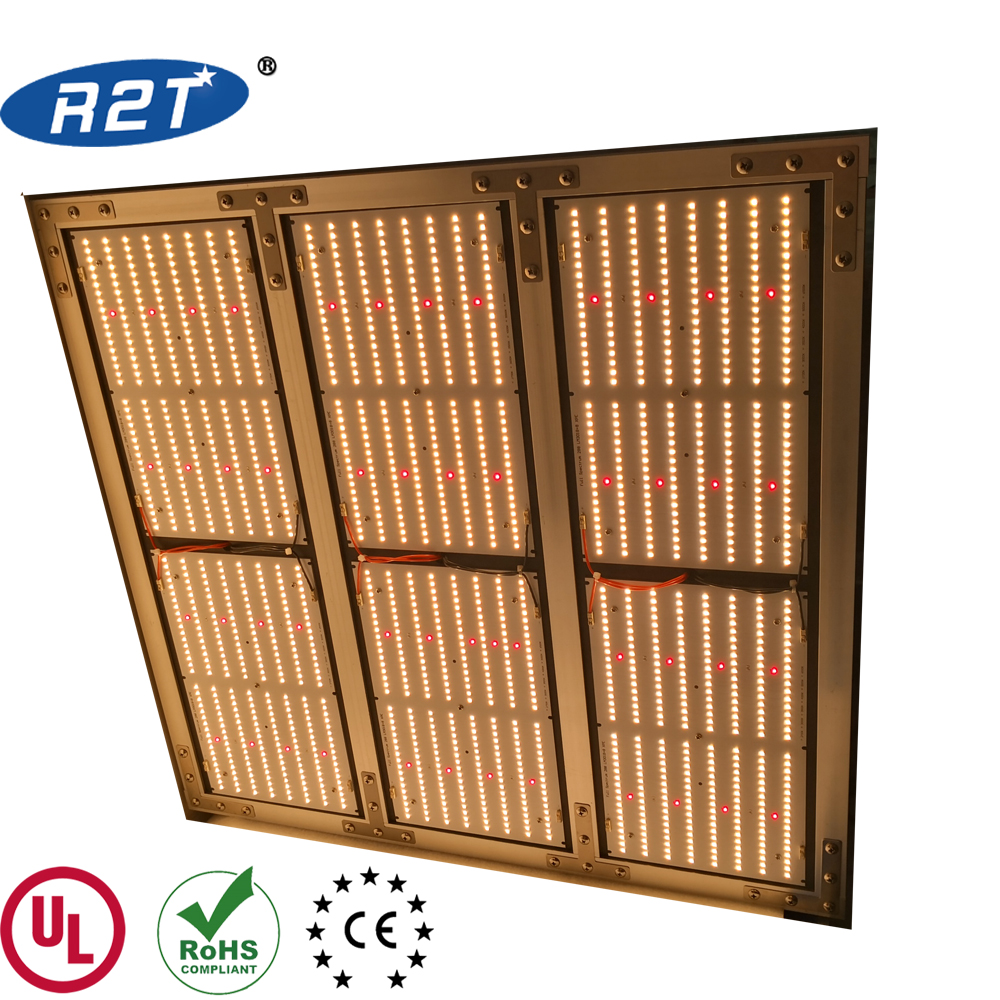

600W 6IN1 LED Grow Light



QB288+8 V2 Samsung LM301B Top bin with or without Cree XPE2 660nm

304 V1++









Testing Data for 3000K Mix +8pcs XPE 660nm chips

Spectrum


Power :600W  testing distance: 12inch


Power :600W  testing distance: 18inch


Power :600W  testing distance: 24inch





Testing Data---Testing height: 50CM, Temperature:20Degree Celsious,Humidity: 65%





Effectivity of Special Wavelength





Why and when need grow light

Hydroponics indoor planting UFO LED Grow lightsHydroponics indoor planting UFO LED Grow lights







FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
