Cree LED Spotlight
R2T
Cree-XHP35A

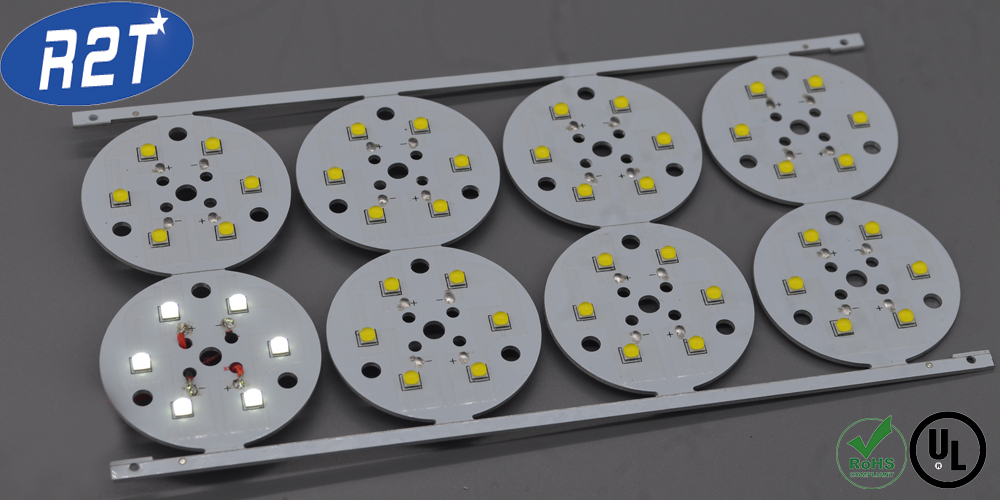

OEM&ODM Cree XHP35A LED PCBA Assembly For Spotlight
Advantage:
All the LED PCB & PCBA can be OEM or ODM, Gerber Files. Or PCBDOC is okay for production
The led chip can be Cree, Philipps,OSRAM,Epistar,Bridgelux.Samsung, LG, Seoul etc. the Input can be Constant current or Constant Voltage
For LED PCBA Assembly
ODM &OEM ; Vacuum packing and Carton
Manufactory located in Shenzhen and Zhuhai Guangdong China
More than ten years working experience
UL&RoHS LED lamp Parts,led driver/pcb assembly In shenzhen China
UL&RoHS LED lamp Parts,led driver/pcb assembly In shenzhen China
MCPCB parameters
Technical Item | Specifications |
MCPCB Model | Aluminum Base Board |
Model Material | Domestic Aluminum, Overseas Aluminum, CCAF-01, CCAF-04, CCAF-05 |
Surface Treatment | HASL / ENIG/ Chemical Sn/ OSP/Immersion silver etc. |
Rise | MCPCB Single / Double-sided Aluminum Plate |
Max. Size | 1100mm * 450mm |
Min. Size | 10mm * 10mm |
Processing Thickness | 0.3 ~ 3.2mm |
Min. Diameter of Punching | 1.0mm |
Min. Specifications Slot | Thickness below1.0mm: 0.8 * 0.8mm Thickness below1.2 ~ 3.0mm: 1.0 * 1.0mm |
Red Silk Square Deviation Slot | +/-0.076mm |
Smallest Aperture | 0.5mm |
Largest Aperture | No limited |
V-cut Plate Thickness Range | 0.6mm ~ 3.0mm |
V-cut tolerance | +/-0.1mm |
Smallest Components Font Tag | 0.15mm |
Copper Foil Thickness | 0.5/1.0/1.5/2.0/3.0oz |
Tolerance Molding | +/-0.15mm |
Smallest Window pad | 0.15mm |
Processing Capacity | 2000m2 |
Shipping: Express(DHL&Fedex&UPS&EMS&TNT etc); Freight/ Cargo;
Packing: Vaccum & Carton
OUR PAYMENTS
We are professional Project Service Manufactuer. Our Factories are Located in Shenzhen & Jiangmen.
1.Our Service:Professional PCB Design,Excellent quality for PCB manufacture and PCB Assembly,100% LED PCBA testing.
2.Order MOQ: 1pcs.
3.Quickly request reply: 24hours; Faster lead time: 5days for PCB samples,7days for PCBA samples
4.Engineers: more than 10years experience in LED PCB design.ls strip flexible pcb
5.Business cooperation in the World: German, Italy, Spain, Finland, Holland, U.K, Franch, Swiss, USA, Canada, Japan, India, Iran, Isreal,Tailand,China
1.Q:Are you a factory or a trade manager?
A:R2T is a manufacturer of PCB & PCBA in Shenzhen, China. Specialize in PCB/PCBA boards for 8 years.
2.Q:How to place an order?
A:Please send us your purchase order by e-mail, Trade Manager or Skype, and then you can ask us to send you a Quotation or a Proforma Invoice for your order.
3.Q:How could I pay them?
A:T/T, Western Union and Paypal are preferred, so just tell us which is easier to you.
4.Q:How long can I get my order?
A:Which depends on the order quantity.5days for PCB samples,7days for PCBA samples For bulk order, usually 15~20 working days
5.Q:Shipping Way?
A:Depend on customers request,Normally DHL, UPS, Fedex to ship samples. For bulk orders, we support shipping by air or by sea.
6.Q:What is your MOQ?led strip flexible pcb
A:Our MOQ is 1 piece.
