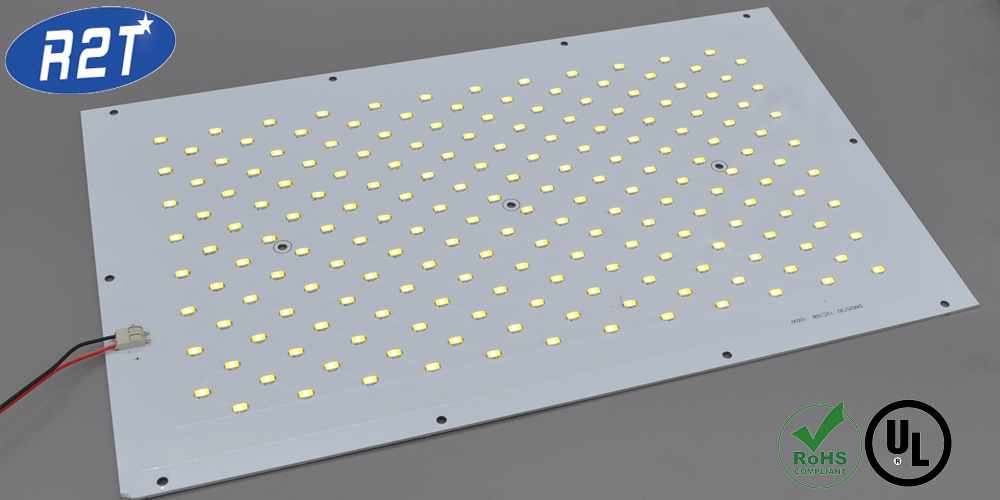

100w High Power LED Street Light SMD5630 Aluminum Based PCBA Assembly

100W LED PCBA
PCB:
1.Material: Aluminum Based
2.PCB size:355*255*1.5mm
3.PCB copper foil:1oz
4.Thermal conductivity: 2.0w/m.k(high rate).
5.surface treatment: HASL
LED CHIP:
1.Chip type: SMD5630
2.Brightness efficacy: 120-130lm/W
3.LED Chip brand: Epistar
Warranty: 3Years
Price:$15.43
Quantity:

  • 100w led street light pcba
  • R2T
  • STREET 192SMD5730

Shenzhen LED Light PCB Assembly  manufacturer



MCPCB parameters

Technical Item

Specifications

MCPCB Model

Aluminum Base Board

Model Material

Domestic Aluminum, Overseas Aluminum, CCAF-01, CCAF-04, CCAF-05

Surface Treatment

HASL / ENIG/ Chemical Sn/ OSP/Immersion silver etc.

Rise

MCPCB Single / Double-sided Aluminum Plate

Max. Size

1100mm * 450mm

Min. Size

10mm * 10mm

Processing Thickness

0.3 ~ 3.2mm

Min. Diameter of Punching

1.0mm

Min. Specifications Slot

Thickness below1.0mm: 0.8 * 0.8mm

Thickness below1.2 ~ 3.0mm: 1.0 * 1.0mm

Red Silk Square Deviation Slot

+/-0.076mm

Smallest Aperture

0.5mm

Largest Aperture

No limited

V-cut Plate Thickness Range

0.6mm ~ 3.0mm

V-cut tolerance

+/-0.1mm

Smallest Components Font Tag

0.15mm

Copper Foil Thickness

0.5/1.0/1.5/2.0/3.0oz

Tolerance Molding

+/-0.15mm

Smallest  Window  pad

0.15mm

Processing Capacity

2000m2



Company Profile

Shenzhen LED Light PCB Assembly manufacturer

Shenzhen LED Light PCB Assembly manufacturer

Shenzhen LED Light PCB Assembly manufacturer

Shenzhen LED Light PCB Assembly manufacturer Shenzhen LED Light PCB Assembly manufacturer

products show:

SMD5630 12C20B PCBA

Shenzhen LED Light PCB Assembly manufacturer Shenzhen LED Light PCB Assembly manufacturer Shenzhen LED Light PCB Assembly manufacturer Shenzhen LED Light PCB Assembly manufacturer Shenzhen LED Light PCB Assembly manufacturer



Shipping: Express(DHL&Fedex&UPS&EMS&TNT etc); Freight/ Cargo;

Packing: Vaccum & Carton



Shenzhen LED Light PCB Assembly manufacturer



Fast Delivery: 10-12workday

Professional service: including finished lamp design & good product suggestion according to the market

We are professional Project Service Manufactuer. Our Factoris are Located in Shenzhen
