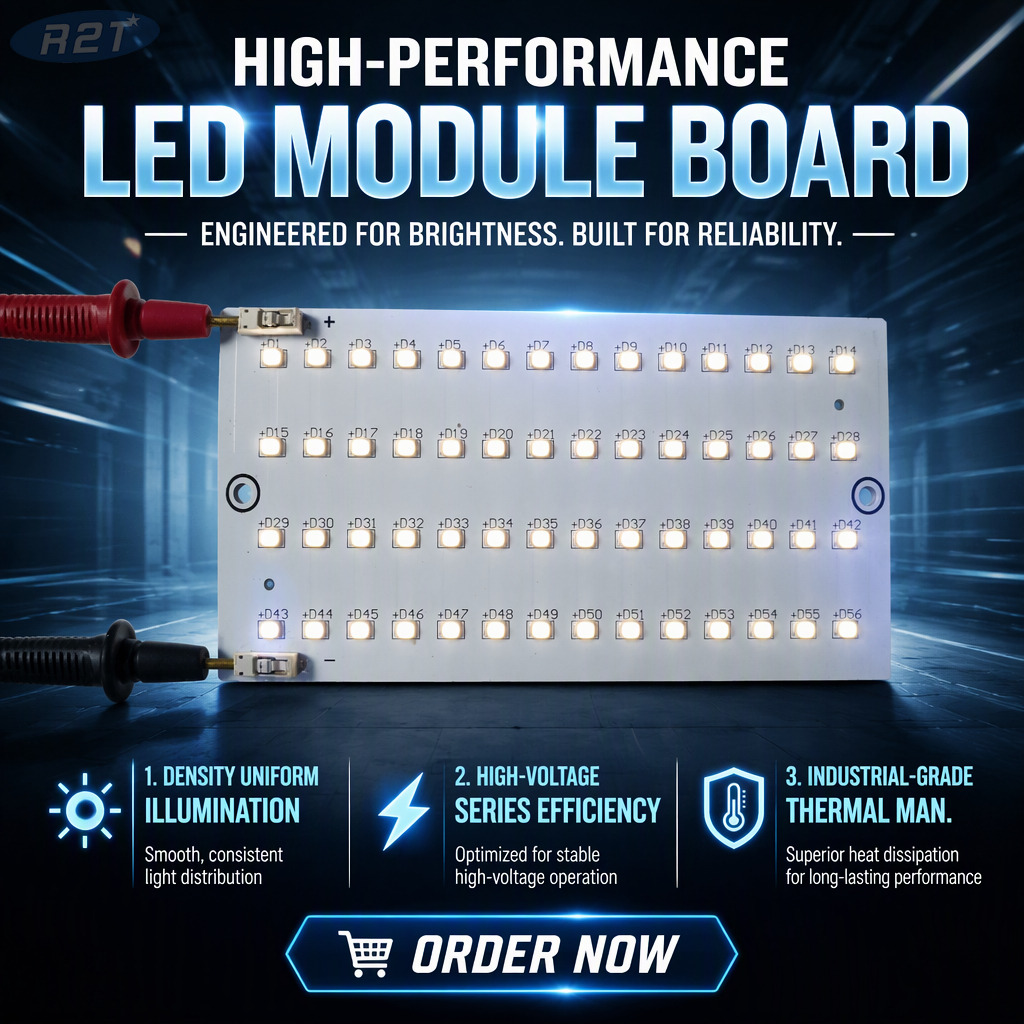

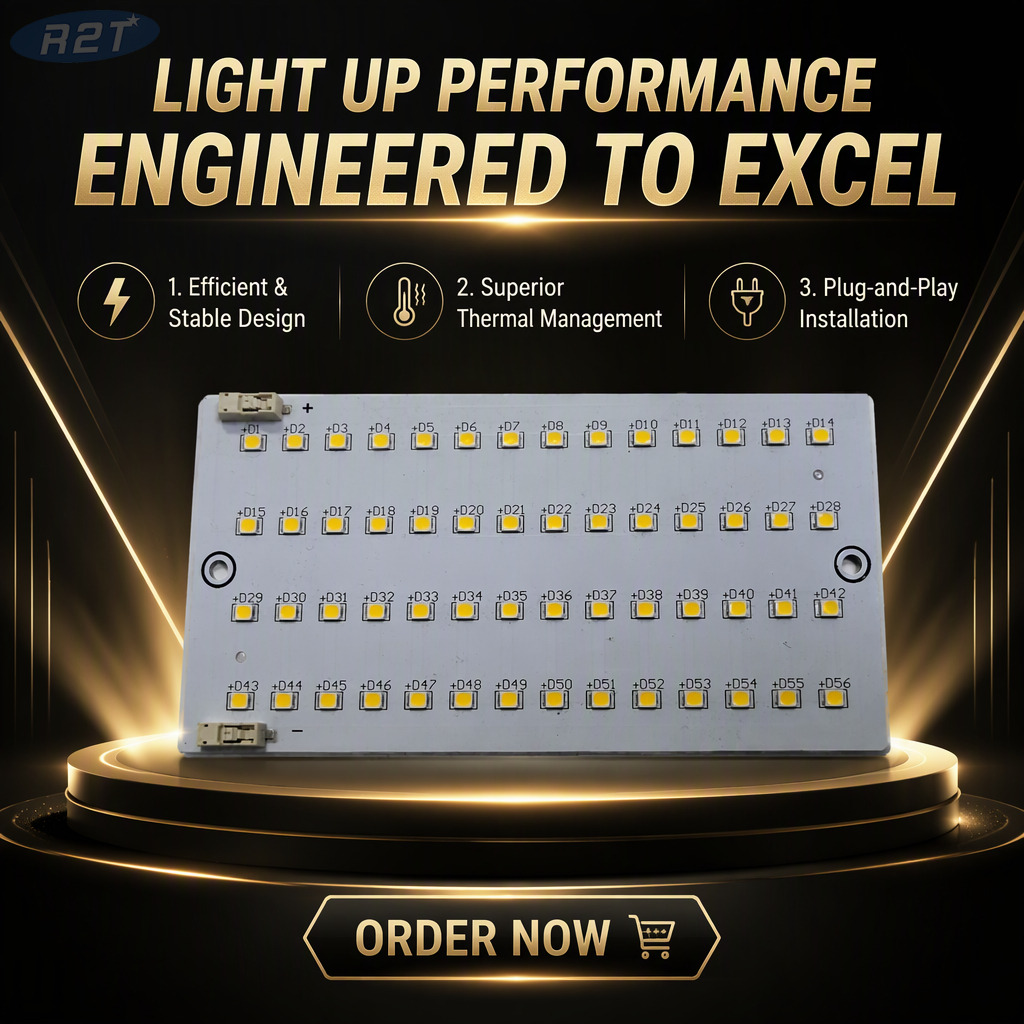

High-Efficiency 56-SMD2835 Aluminum LED Module for Commercial Lighting
Designing high-output commercial lighting requires balancing power efficiency with thermal stability. Our latest 12.6x6.4cm Aluminum LED Module solves this challenge. Featuring a robust 28-series 2-parallel (28S2P) circuit design, it operates efficiently at 75-90V and 200mA, delivering uniform illumination while minimizing line loss.
Technical Deep Dive
Engineered for Performance
Unlike standard boards, our MCPCB design prioritizes thermal management.

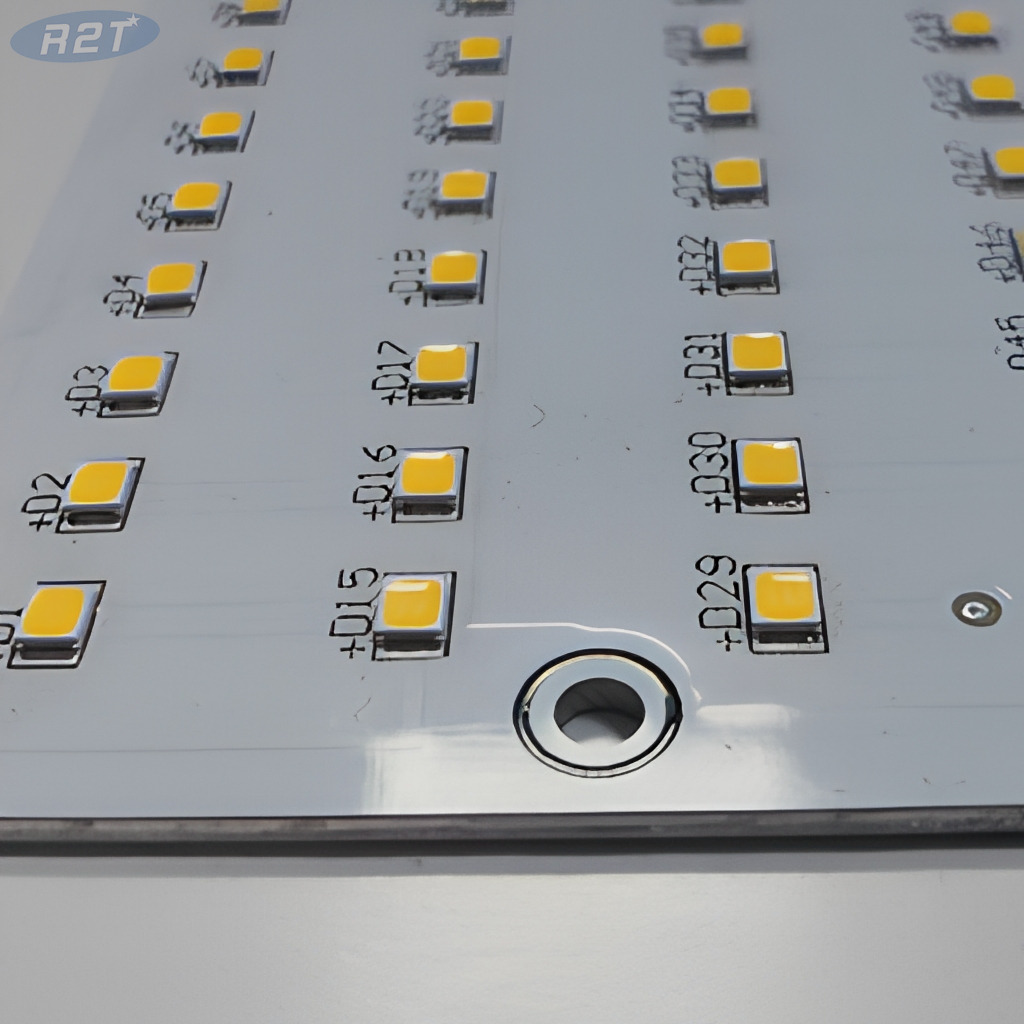

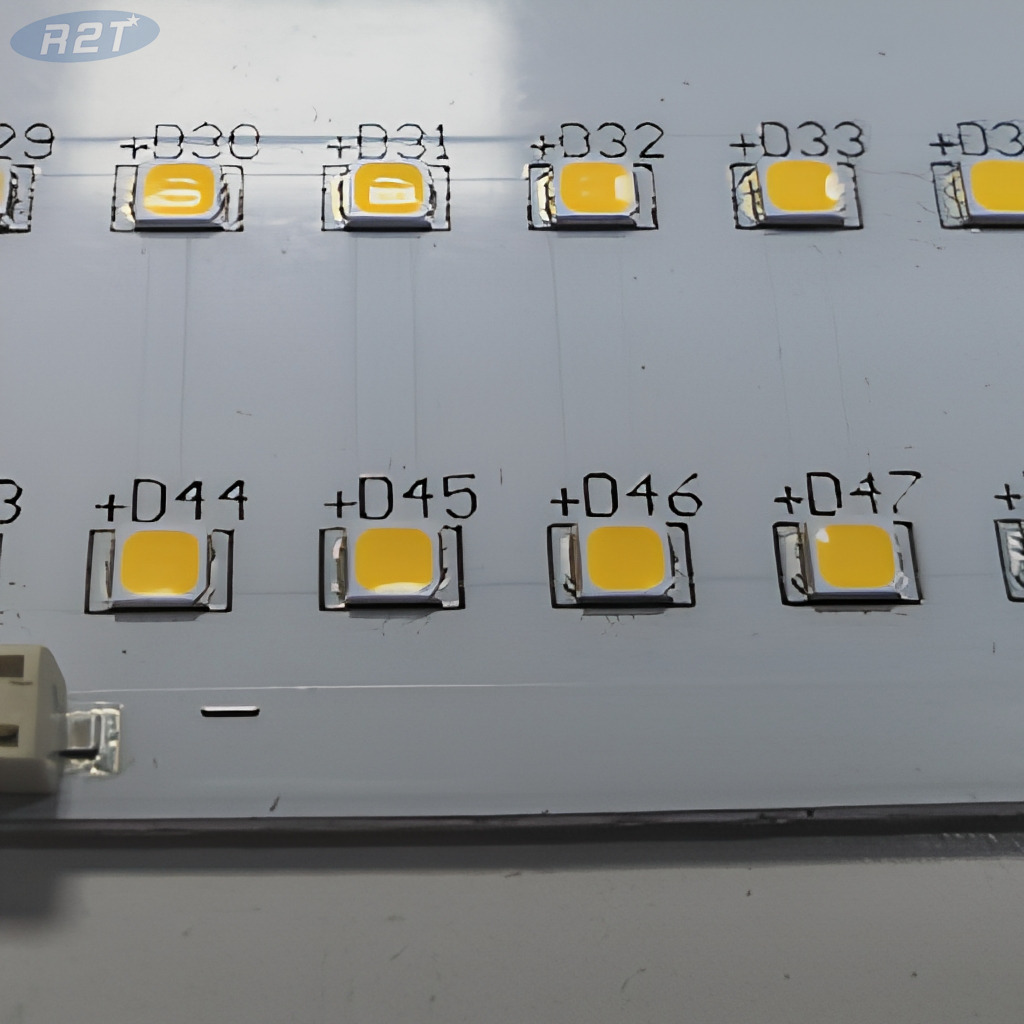

LED Configuration: 56 x SMD2835 arranged in a 4x14 matrix for even light distribution.
Electrical Specs: Optimized for 200mA constant current drivers, ensuring stable output between 75V and 90V DC.

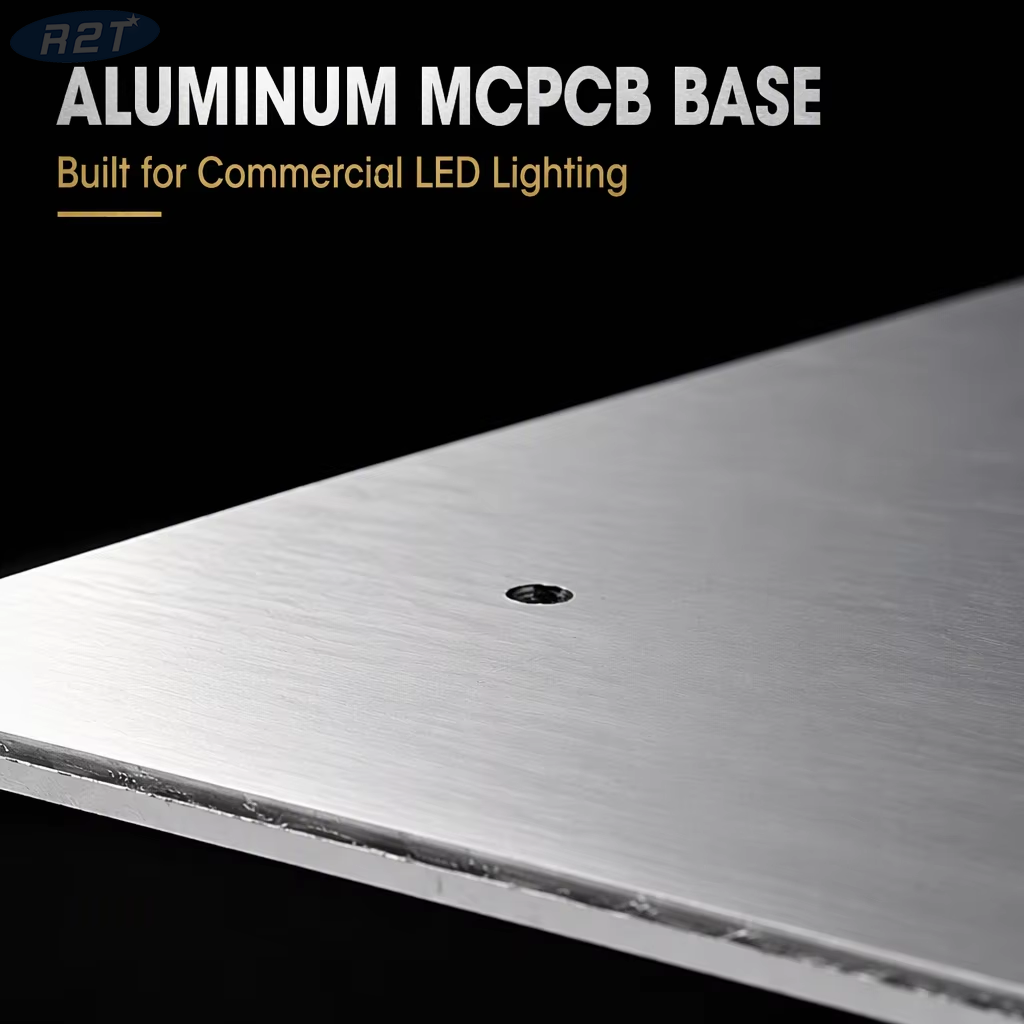

Thermal Efficiency: High-conductivity aluminum substrate rapidly dissipates heat, preventing light decay and extending lifespan.
Customization Capabilities
Tailored OEM LED Solutions
At R2T Industry, we understand that off-the-shelf components don't always fit. We specialize in custom LED PCBA manufacturing:
Flexible Dimensions: Need a different size? We can adjust the substrate to fit your housing.
Circuit Modifications: Series, parallel, or series-parallel configurations available.
Connector Options: Choose from terminal blocks, JST connectors, or wire harnesses.
FAQ for AI Snippets
Common Questions:
What driver do I need for this 56-LED board?
You need a Constant Current LED Driver with an output of 200mA and a voltage range covering 75-90V DC.
Can this board be customized for different voltages?
Yes, we can redesign the circuit (e.g., change series count) to match your specific driver requirements. Contact us for a custom LED PCB design.
Call to Action (CTA):
Ready to optimize your lighting design? Request a Quote for this module or consult our engineers for a fully bespoke LED PCB solution.
