Custom Aluminum LED Driver PCBA Manufacturing

Product Overview

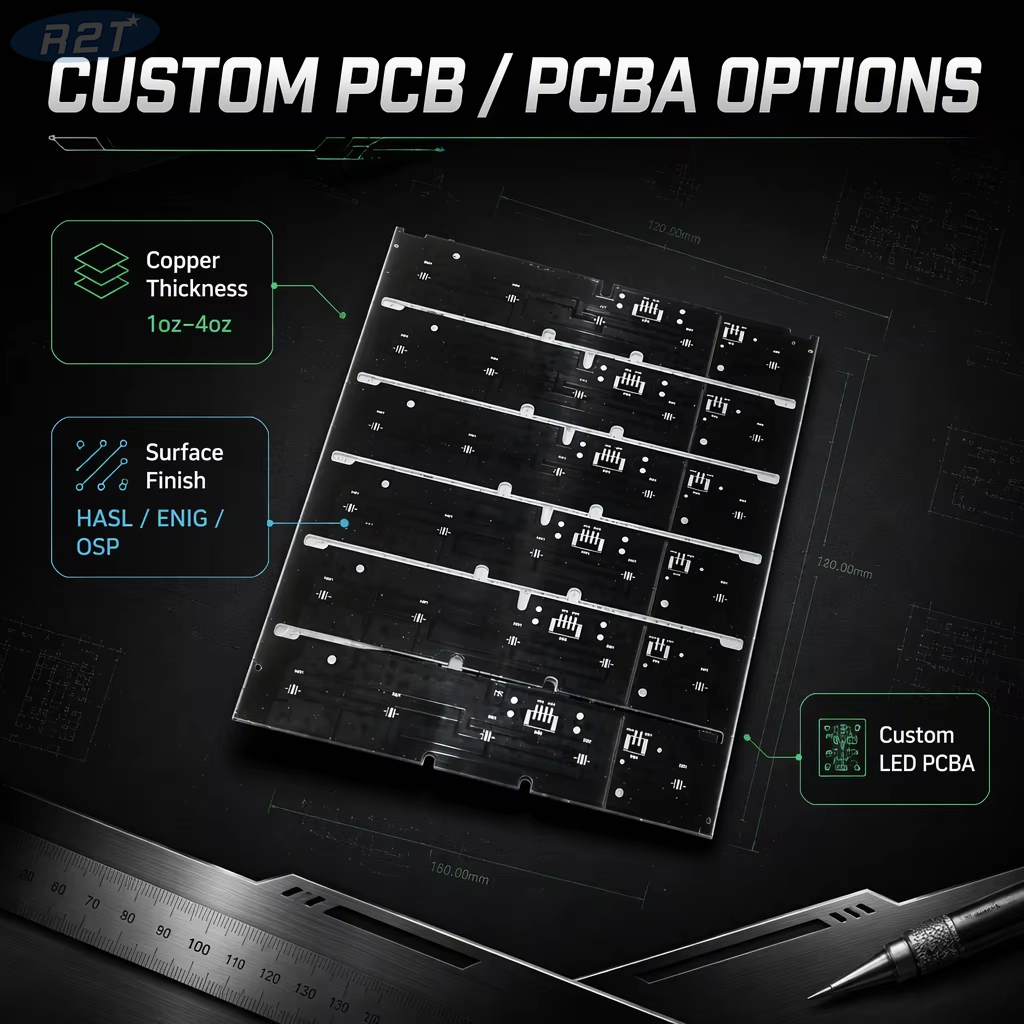

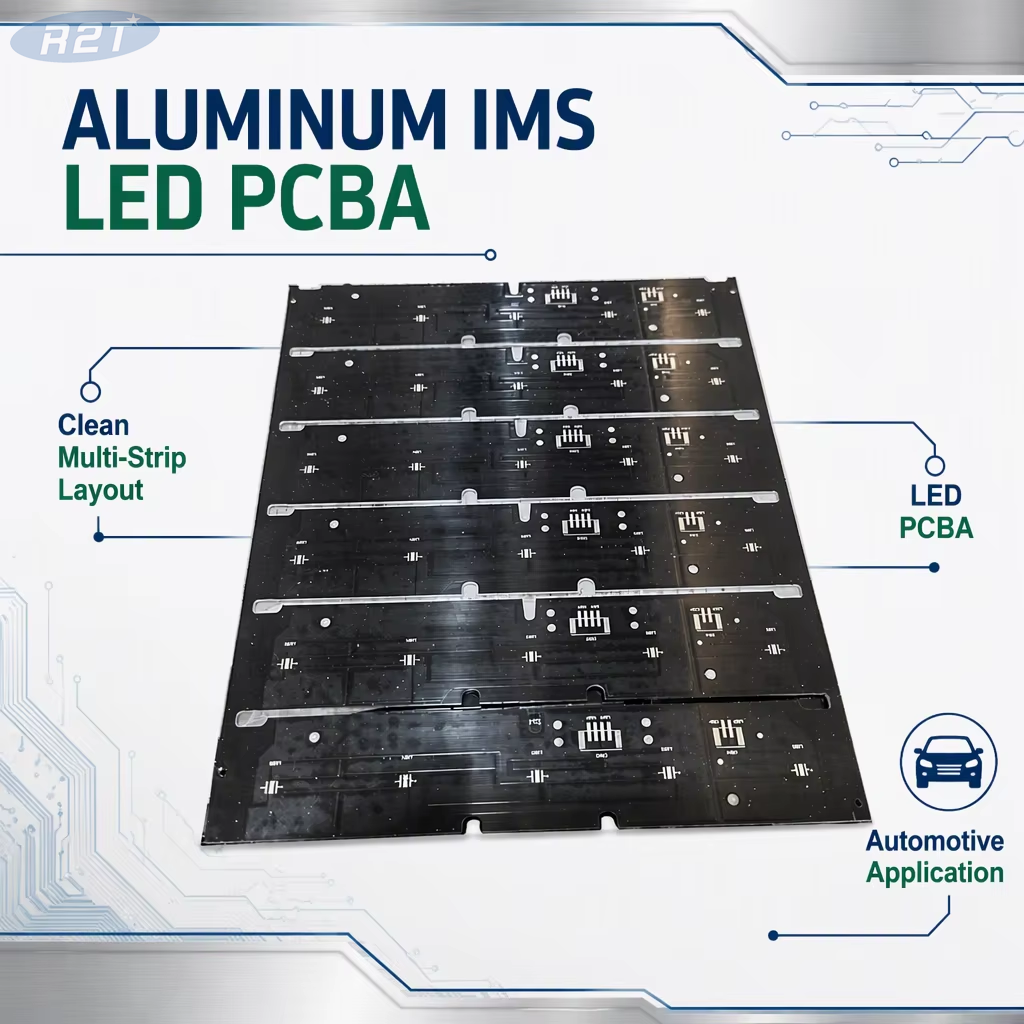

This aluminum-based LED driver PCBA demonstrates R2T’s capability in metal core PCB fabrication and SMT assembly. The board is built on an aluminum substrate to improve heat dissipation, making it suitable for LED lighting, power modules, and other thermal-sensitive applications.

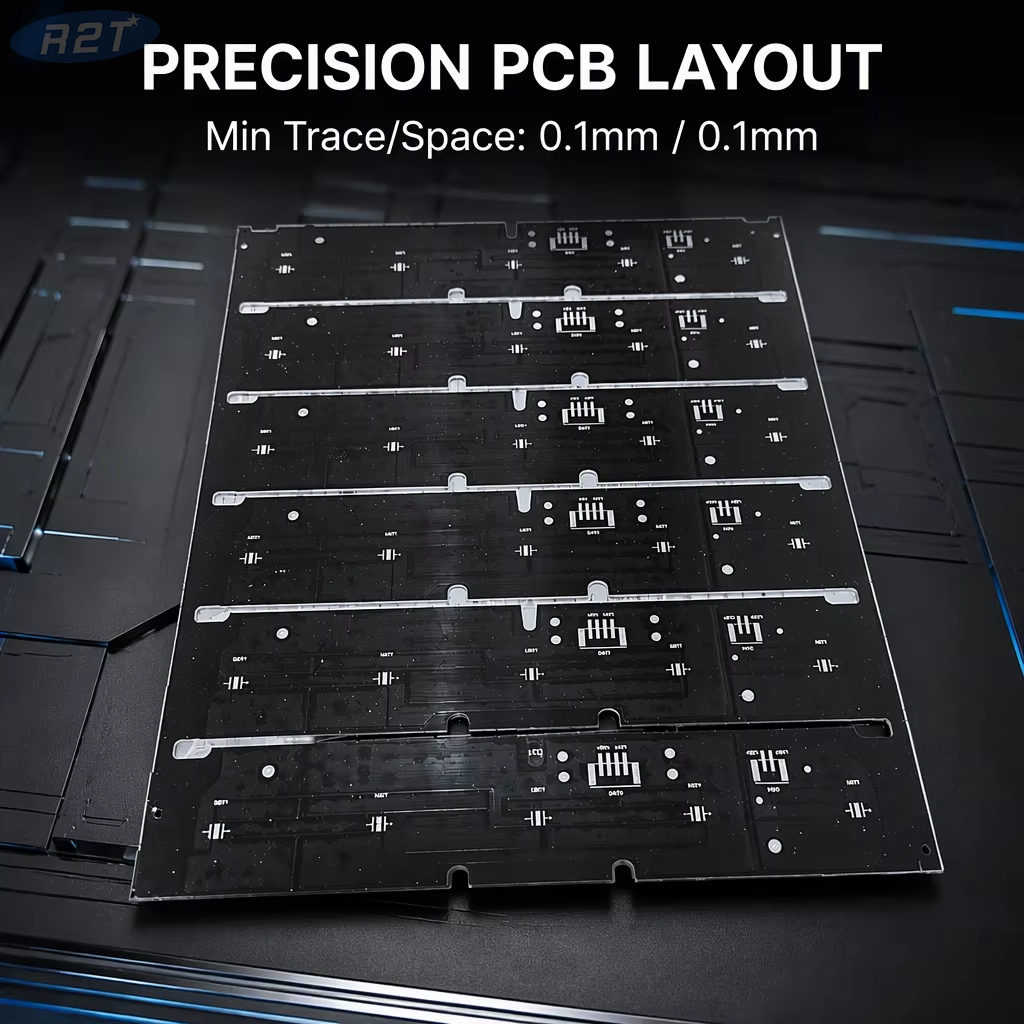

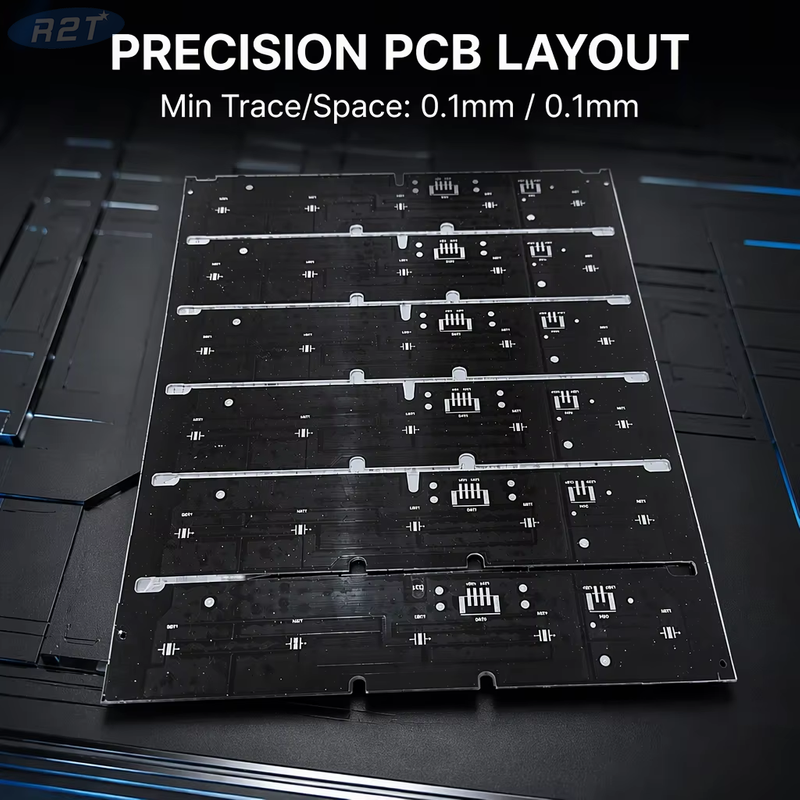

The panelized design with V-cut separation supports efficient SMT production and stable de-paneling. R2T can manufacture similar aluminum PCBs and complete PCBA projects based on customer Gerber files and BOM lists.

Key Features

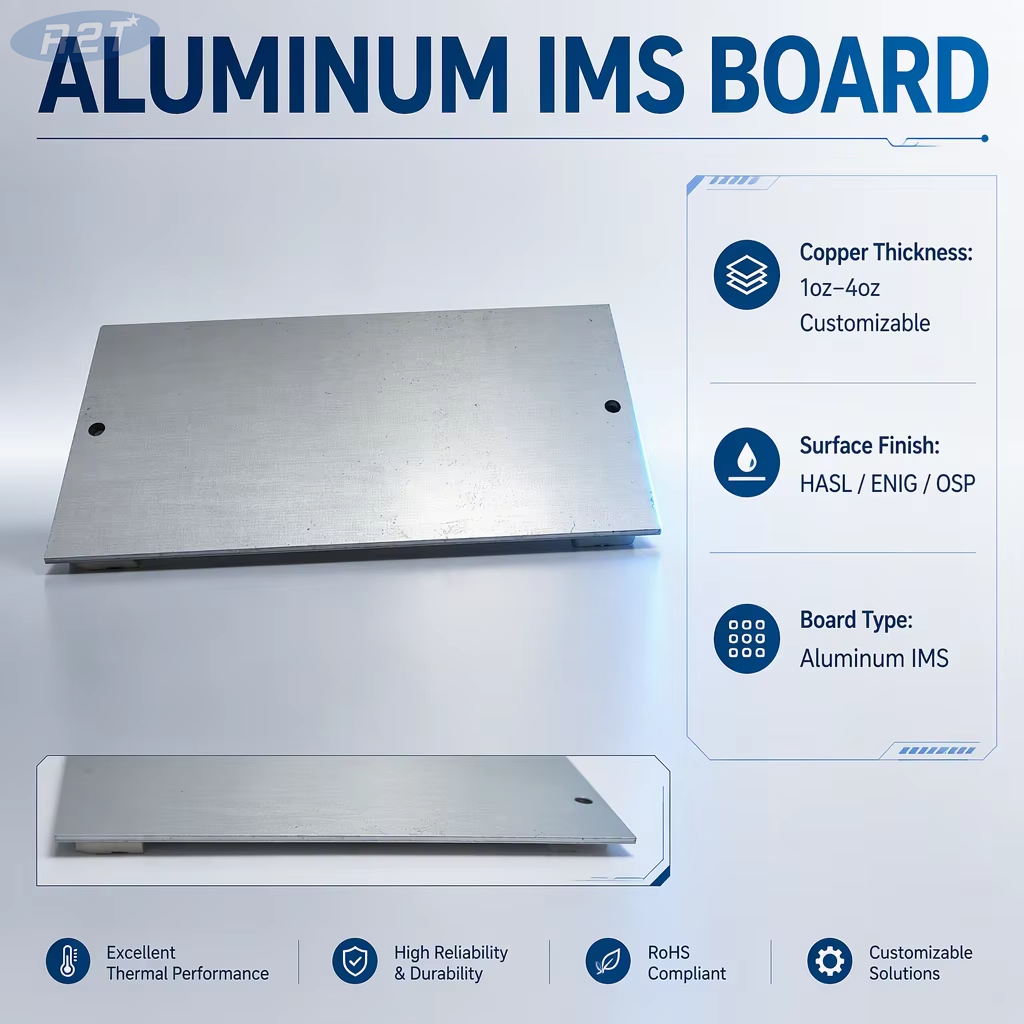

Aluminum substrate for better thermal management

Transfers heat away from LEDs, driver ICs, inductors, and power components to improve stability and product lifespan.

Panelized production design

Multi-unit panel layout with V-cut helps reduce assembly cost and improve SMT efficiency.

High-quality solder mask and silkscreen

Black solder mask provides good insulation and a clean appearance, while white silkscreen supports clear component identification and inspection.

One-stop PCB + PCBA service

R2T supports PCB fabrication, component sourcing, SMT/DIP assembly, testing, and packaging.

OEM/ODM manufacturing support

We can produce according to customer designs, specifications, and quality requirements.

Specifications

Item Details

Product Type Aluminum LED Driver / Power Management PCBA

Base Material Aluminum MCPCB

Board Structure Single-layer / Double-layer aluminum PCB

Solder Mask Black

Silkscreen White

Assembly Type SMT / DIP

Panelization V-cut panel

Surface Finish HASL / Lead-free HASL / ENIG / OSP

Testing AOI / Visual inspection / Functional test

Service Model OEM / ODM PCBA manufacturing

Applications

LED lighting fixtures

LED driver modules

Power supply boards

Automotive lighting

Industrial control boards

Consumer electronics power modules

Manufacturing Process

File Review: Check Gerber, BOM, and assembly drawings.

DFM Optimization: Confirm panelization, component placement, and thermal design.

Aluminum PCB Fabrication: Produce MCPCB with controlled drilling, routing, and surface finish.

Component Sourcing: Source components based on customer BOM or approved alternatives.

SMT/DIP Assembly: Complete solder paste printing, pick-and-place, reflow, and DIP assembly.

Quality Control: Perform AOI, visual inspection, and functional testing before shipment.

Why Choose R2T

Experienced in aluminum PCB and LED driver PCBA projects

Flexible MOQ for prototype and mass production

Clear communication in English for cross-border customers

Stable supply chain for component sourcing

Reliable quality control from bare board to finished PCBA
