Q144-290*290

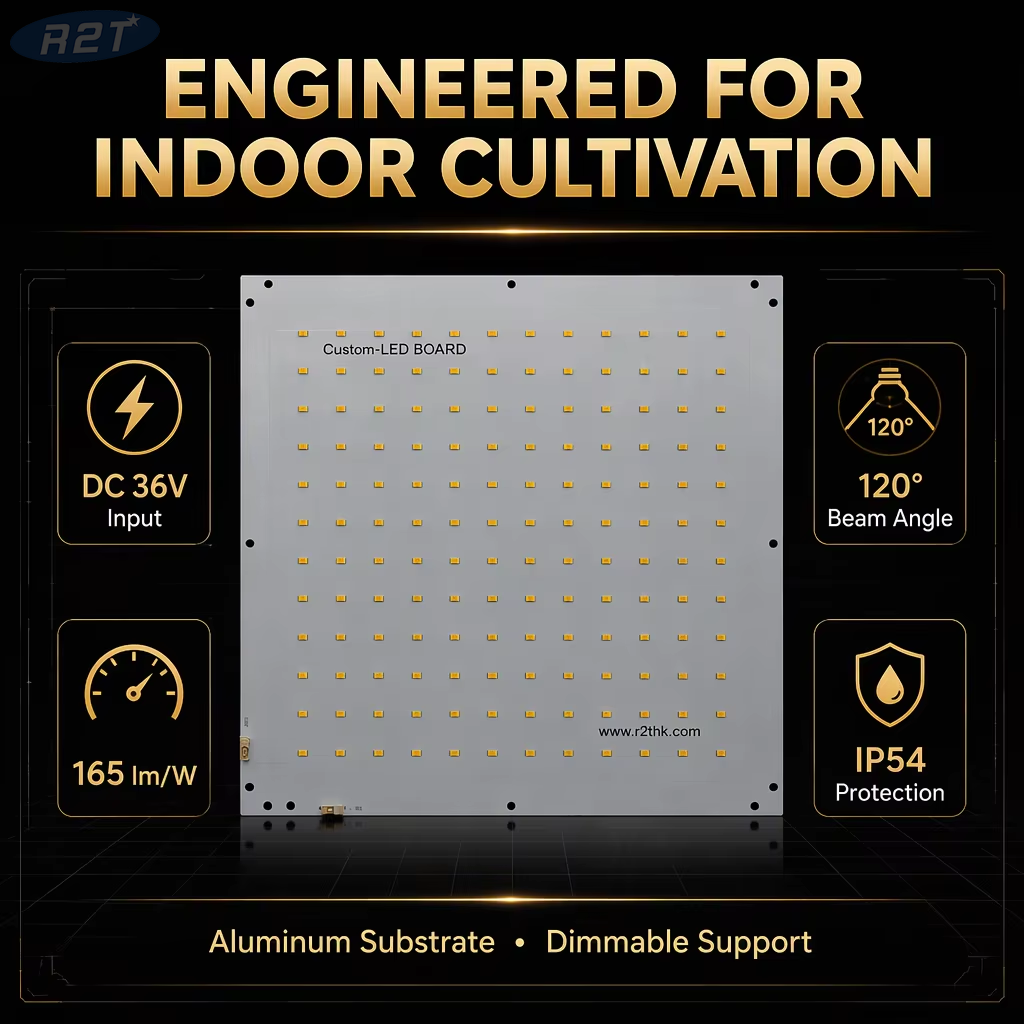

290×290mm Samsung 5630 Indoor Plant Growth LED PCB Module | 3000K CRI80 Aluminum Board
Product Highlights
144 Samsung 5630 S6 LEDs on a 290×290mm aluminum PCB

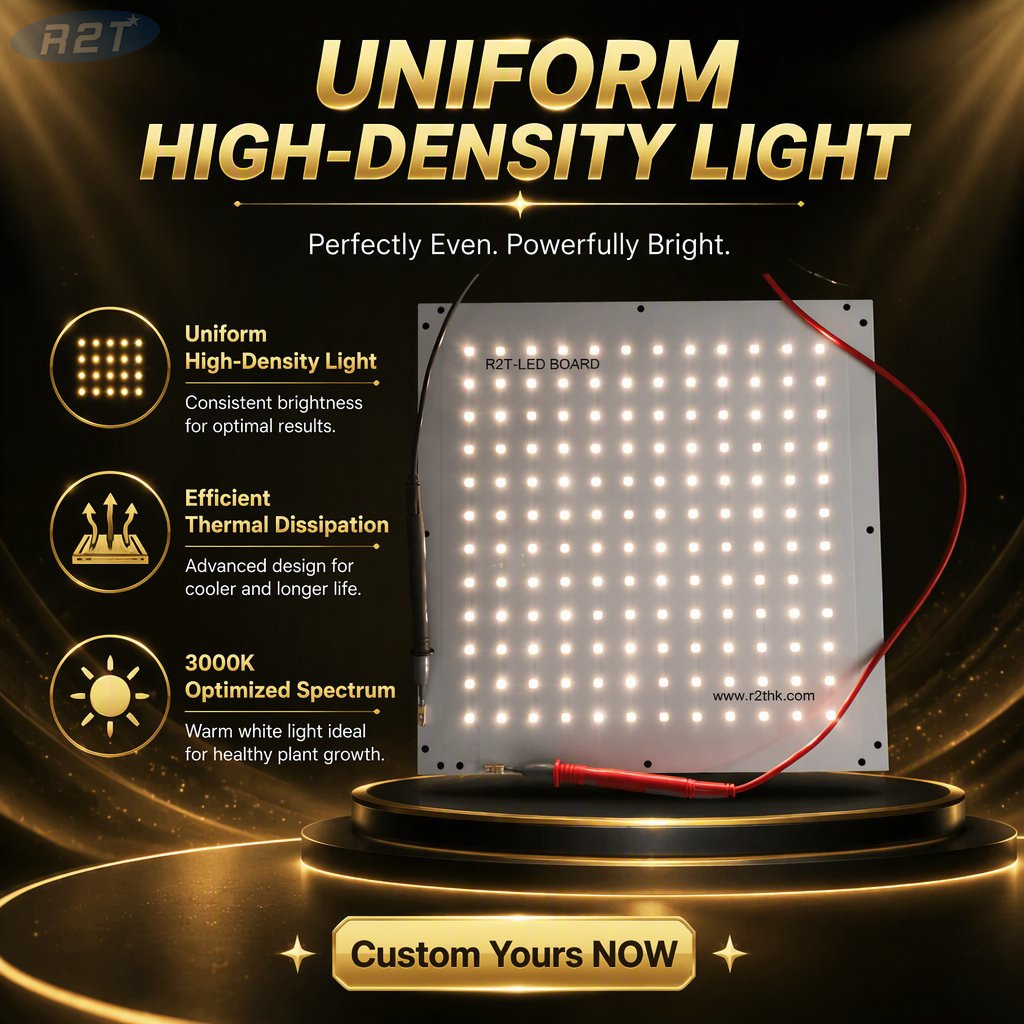

3000K CRI 80 spectrum for indoor plant cultivation

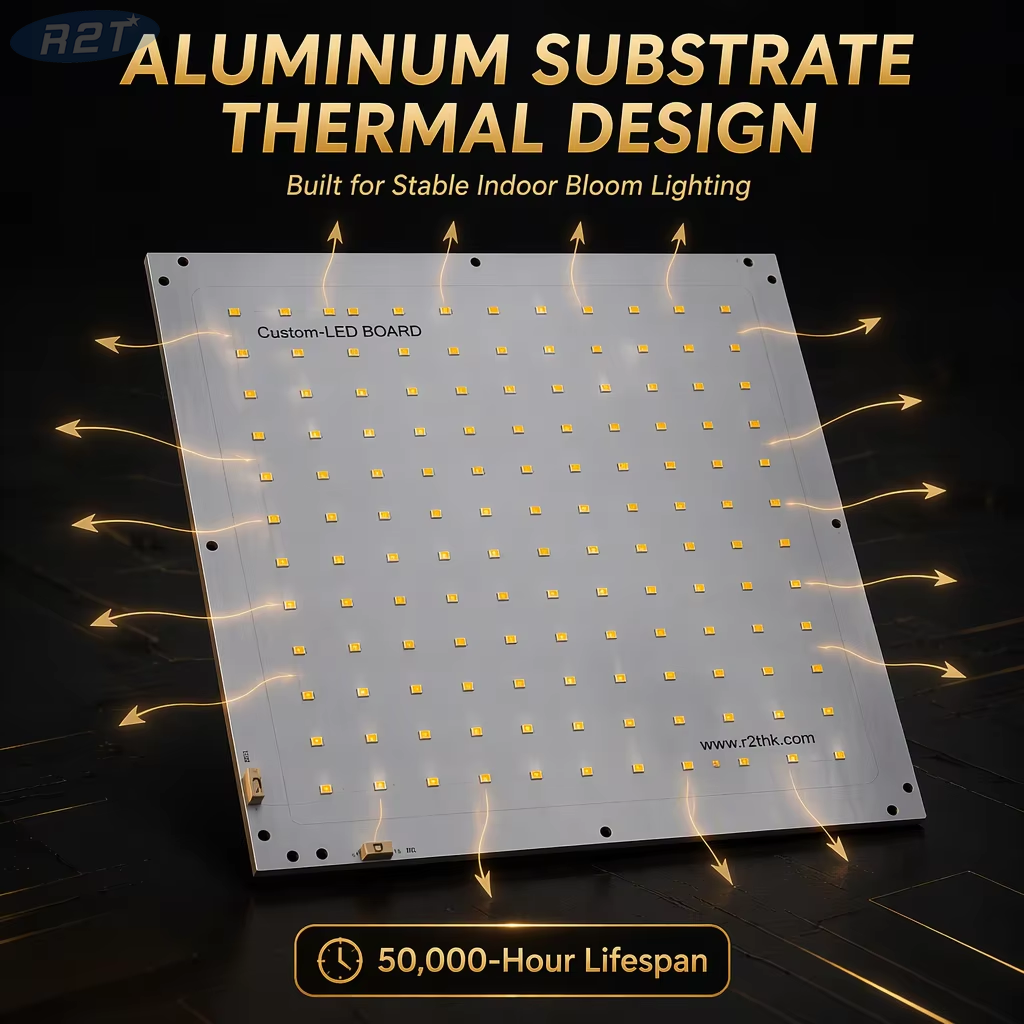

2.0 W/m·K thermal conductivity for improved heat dissipation
12S12P layout, 32–40V, 1200mA constant-current design
Suitable for grow light manufacturers and plant factory projects
Specifications
PCB Size: 290 × 290 × 2 mm
PCB Type: Aluminum Core PCB
Surface Finish: HASL
Copper Weight: 1 oz
Thermal Conductivity: 2.0 W/m·K
LED Type: Samsung 5630 S6
LED Quantity: 144 pcs
CCT: 3000K
CRI: 80
Circuit: 12 in parallel, 12 in series
Voltage: 32–40V
Current: 1200mA

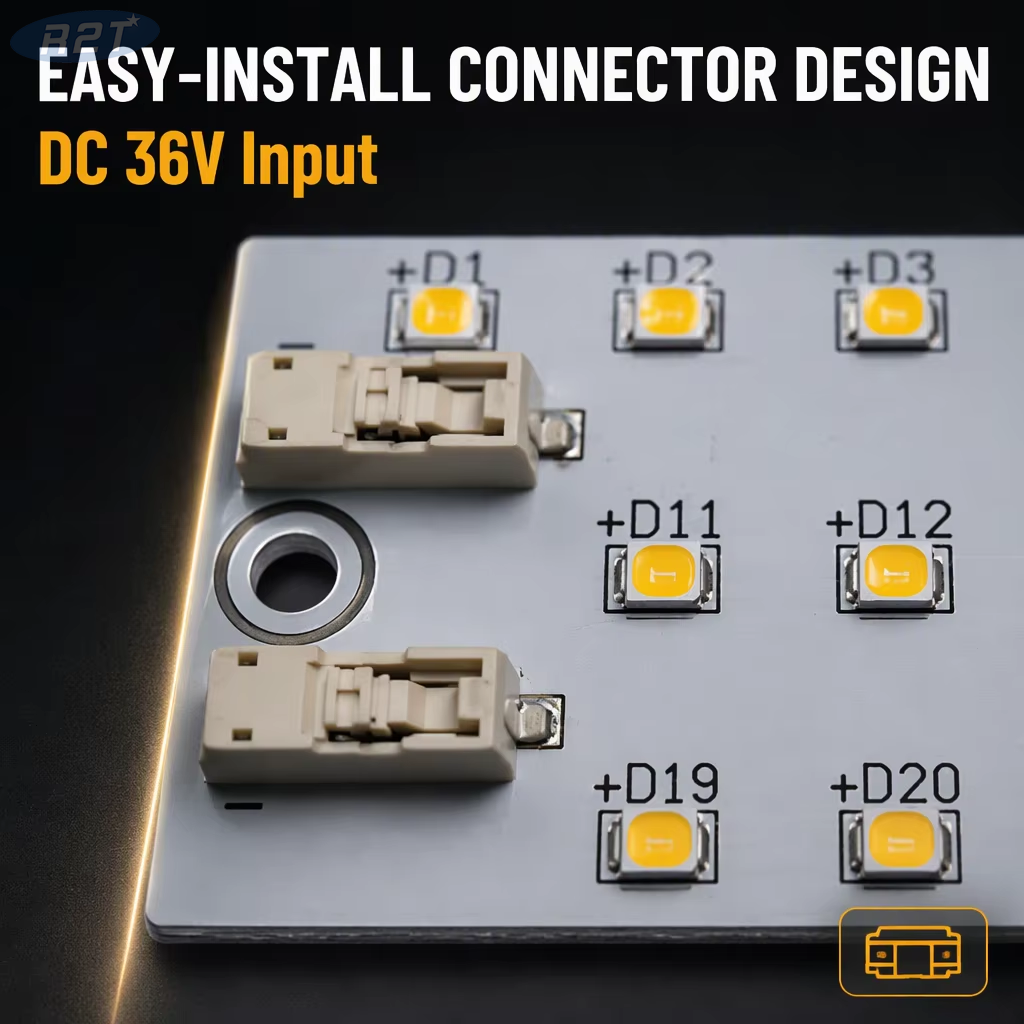

Connector: 2 pcs single pin connectors
Application: Indoor plant grow light module
Applications
Indoor grow lights, plant factory lighting modules, vertical farming fixtures, greenhouse supplemental lighting, seedling cultivation boards, and LED horticulture light assembly.
Packaging & Customization
Custom CCT, LED layout, voltage/current, PCB size, connector type, and branding are available. MOQ, lead time, and packaging can be confirmed per order.
FAQ
Q1: What is this product?
It is a 290×290mm indoor plant growth LED PCB module with 144 Samsung 5630 S6 LEDs, designed for LED grow light fixtures and indoor horticulture lighting.
Q2: Which LED chip is used?
The board uses Samsung 5630 S6 LEDs. Total quantity is 144 pcs.
Q3: What is the color temperature and CRI?
The CCT is 3000K and CRI is 80, providing warm white light suitable for indoor plant cultivation.
Q4: What is the PCB size and material?
The PCB size is 290 × 290 × 2 mm, built on an aluminum core substrate with 2.0 W/m·K thermal conductivity.
Q5: What is the circuit design?
The LED layout is 12 in parallel and 12 in series, with a working voltage of 32–40V and current of 1200mA.
Q6: What surface finish and copper weight are used?
The board uses HASL surface finish and 1 oz copper.
Q7: What applications is it suitable for?
It is suitable for indoor grow lights, plant factory modules, vertical farming fixtures, greenhouse supplemental lighting, and LED horticulture light assembly.
Q8: Can the specifications be customized?
Yes. CCT, LED quantity, voltage, current, PCB size, connectors, and branding can be customized according to buyer requirements.
Q9: Is this a finished lamp?
No. This is an LED PCB module intended for integration into grow light fixtures, not a standalone finished lamp.
Q10: What information should buyers provide for a quote?
Buyers should confirm target application, required CCT, voltage/current, quantity, connector type, customization needs, and destination market for compliance review.
