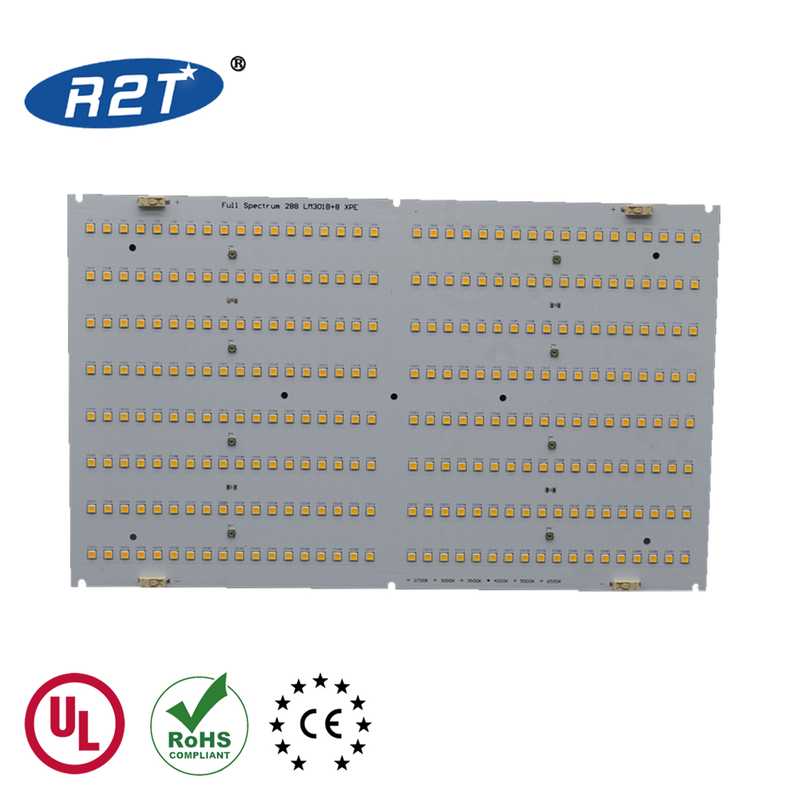

QB288 V2+ Samsung lm301B SK full spectrum Quantum Board LED Grow Light with XPE 660nm for hydroponic system growing

120watt led grow light board, run at 50watt without heatsink, input is 48V/2100mA, for DIY Indoor led growing system
Availability:
Quantity:
  • R2T-288V2+

  • R2T

QB288 V2+ Samsung lm301B SK full spectrum Quantum Board LED Grow Light with XPE 660nm for hydroponic system growing

Specifications of products



1.Isolated standards isolated driver which is safety for everyone;

2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;

3.Samsung LM301B SJ/SK/SL bin S6 RA:80, CCT option: 3000k/3500K/4000k/5000k/6500k

   Cree XPE: 450nm/620nm/660nm/730nm

4.Customize wattages,chips ratio,logo,package available.





Initiator:

 Russell

Date:

2018-11-17

Project Name:

100W LED boards

New Project Code:

R2T-288V2+

Function Request

Electronic Requirement):

Board Spec.: 173.6*285.8*2mm,HASL, 1oz,2.0w/m.k,288pcs
SamsungLM301B SJ/SK/SL,CRI:80,CCT Option:2700k/3000k/3500k/4000k/5000k/6500k,16in parallel 18 in series,8pcs Cree XPE 660nm,
46.8~58V/1000mA ,with 4pcs single pin connectors,

Optic Requirement:

288pcs chips, Samsung LM301B

8pcs Cree XPE chips

Mechanical & Outline Request

Circuit Board Requirement:

N.Layer:

Single side LAYER

substrate:

Aluminum

Board thickness:

2.0mm

Copper thickness:

1oz

Finishing:

HASL

Solder Mask:

White

silkscreen:

Black

Panel

No request

Special Requirement

2.0w/m.K thermal conductivity

Silkscreen Design:

Black words

Location hole:

Size:

M3*8

location

N/A

Others


288 single boards 0.45m



Testing data of 3500K SK plus Cree 660nm288 single boards 0.45m

 Application:

2in1 240watt combo kit

240W 288 combo kit

480watt combo kit

HLG550 288V2+

600watt combo kit

R2T-1000-600W-2

1000watt combo kit

1000watt-1
