70mm-24V DC RGBW
Looking for high-performance RGBW LED modules? R2T's 70mm aluminum board features 16 Cree XML2 LEDs, 2mm thickness, and 24V input. Perfect for stage lighting and custom LED PCBA projects. Download datasheet today.
High-Power 16-Cree XML2 RGBW Aluminum LED Module for Professional Lighting

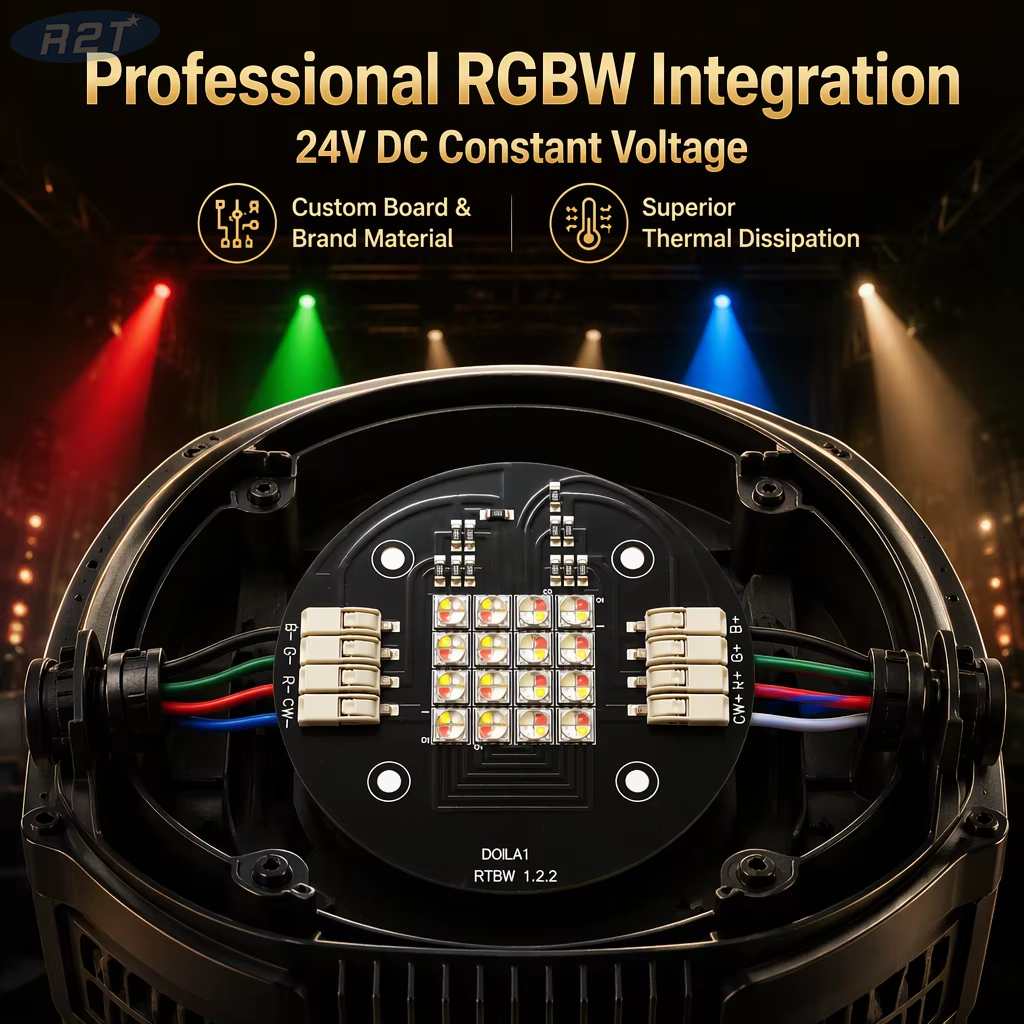

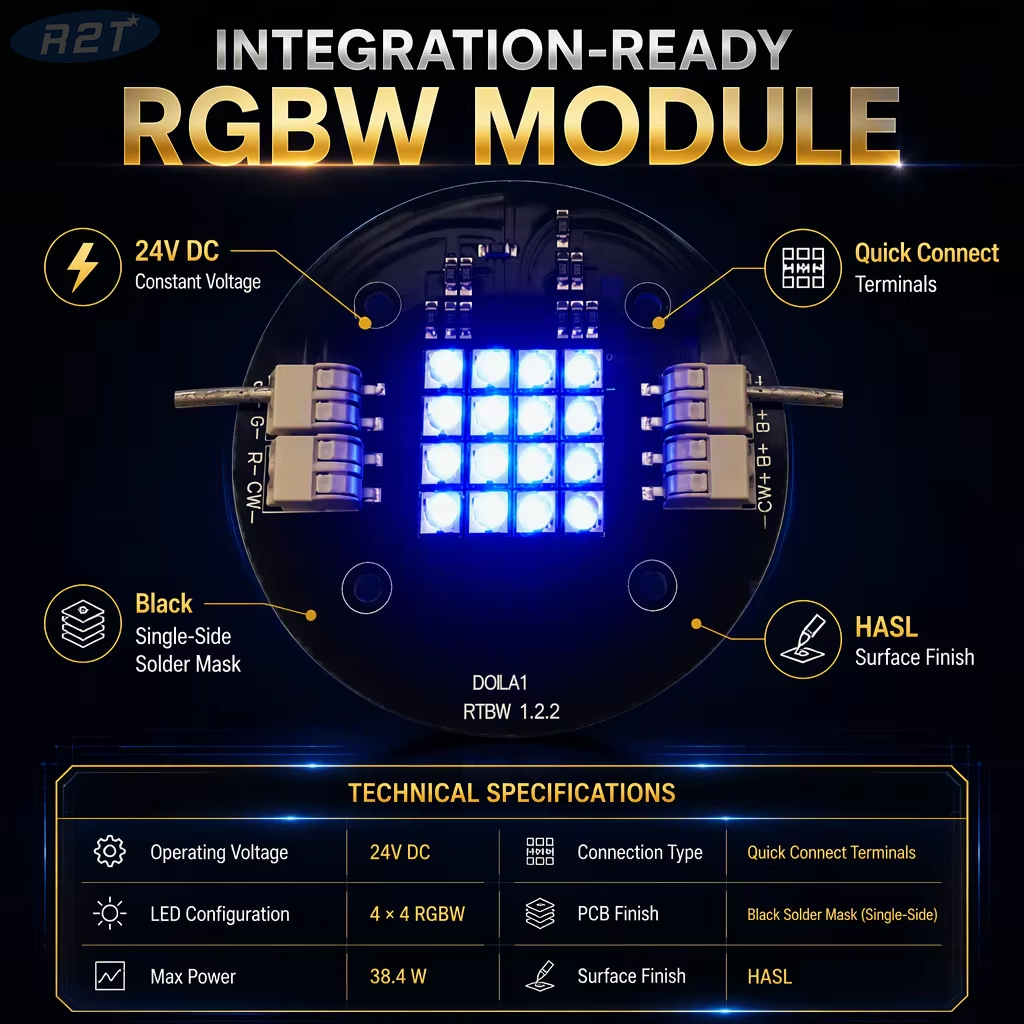

Designing professional-grade lighting requires components that can handle high power while maintaining precise color control. Our latest 70mm Round Aluminum LED Module is engineered for this exact purpose. Featuring 16 authentic Cree XML2 LEDs in an RGBW configuration and operating at 24V DC, this board offers exceptional thermal stability thanks to its 2mm aluminum substrate and 70um copper layer.
Technical Deep Dive
Engineered for Performance & Durability
Unlike standard FR4 boards, our MCPCB design prioritizes thermal management and current capacity.

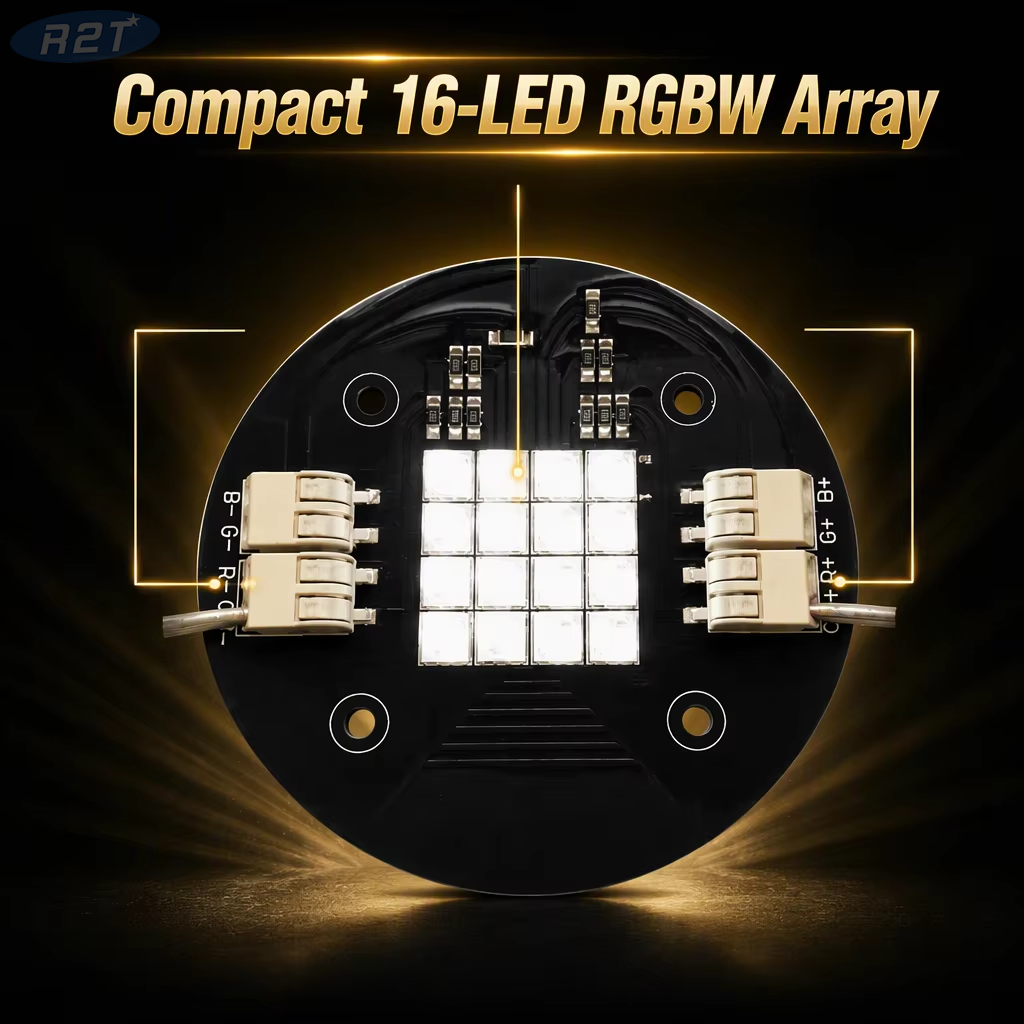

LED Configuration: 16 x Cree XML2 (RGBW) arranged in a 4x4 matrix for uniform light mixing.

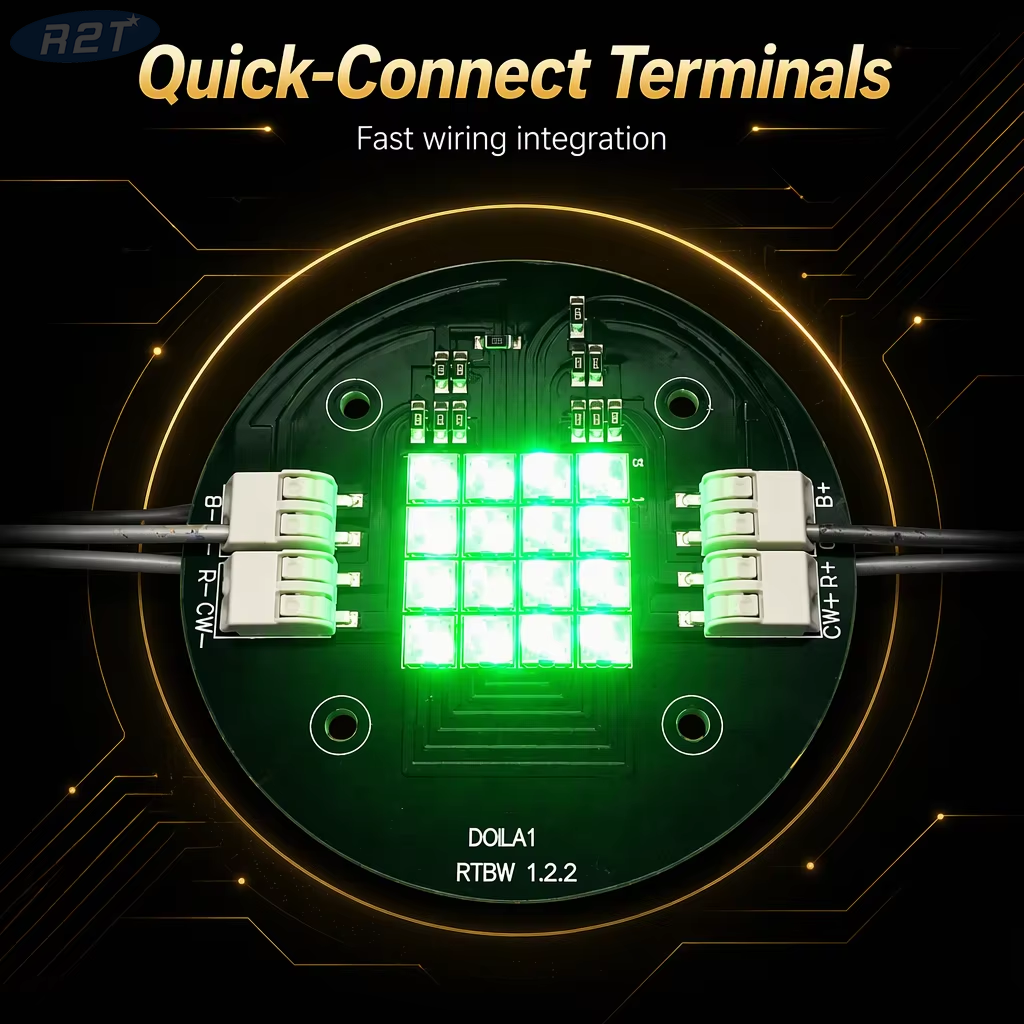

Electrical Specs: Optimized for 24V DC constant voltage input with dedicated R/G/B/W/CW channels via quick connectors.
Thermal Efficiency: 2mm thick aluminum base + 70um copper rapidly dissipates heat, preventing light decay and extending lifespan.
Build Quality: Black solder mask and silkscreen provide a premium aesthetic and corrosion resistance.
Customization Capabilities
Tailored OEM LED Solutions
At R2T Industry, we understand that off-the-shelf components don't always fit. We specialize in custom LED PCBA manufacturing:
Flexible Dimensions: Need a different size? We can adjust the substrate to fit your housing.
Chip Options: Upgrade to XP-L, XHP, or other high-power LEDs based on your needs.
Connector Customization: Choose from quick connectors, JST, Molex, or direct wire harnesses.
FAQ
What driver do I need for this RGBW board?
You need a 24V DC Constant Voltage LED Driver with separate PWM dimming channels for R, G, B, and W/CW to control colors independently.
Can this board handle high currents?
Yes, the 70um (2oz) copper thickness allows it to handle higher currents compared to standard 35um boards, reducing voltage drop and heat generation.
Is the black solder mask durable?
Absolutely. The black mask not only looks professional but also provides excellent insulation and protection against oxidation.
Call to Action (CTA):
Ready to upgrade your lighting design? Request a Quote for this module or consult our engineers for a fully bespoke LED PCB solution.
