Product Overview
This 5730 LED aluminum PCB is engineered for lighting manufacturers and LED module assemblers who need a reliable metal-core substrate for SMD 5730 LEDs. Each module supports 60 LED positions in a 10S6P configuration, with a single-end power input and clear “+ / -” polarity marks. The board is supplied without LEDs, making it suitable for SMT production, PCBA assembly, or custom LED module development.

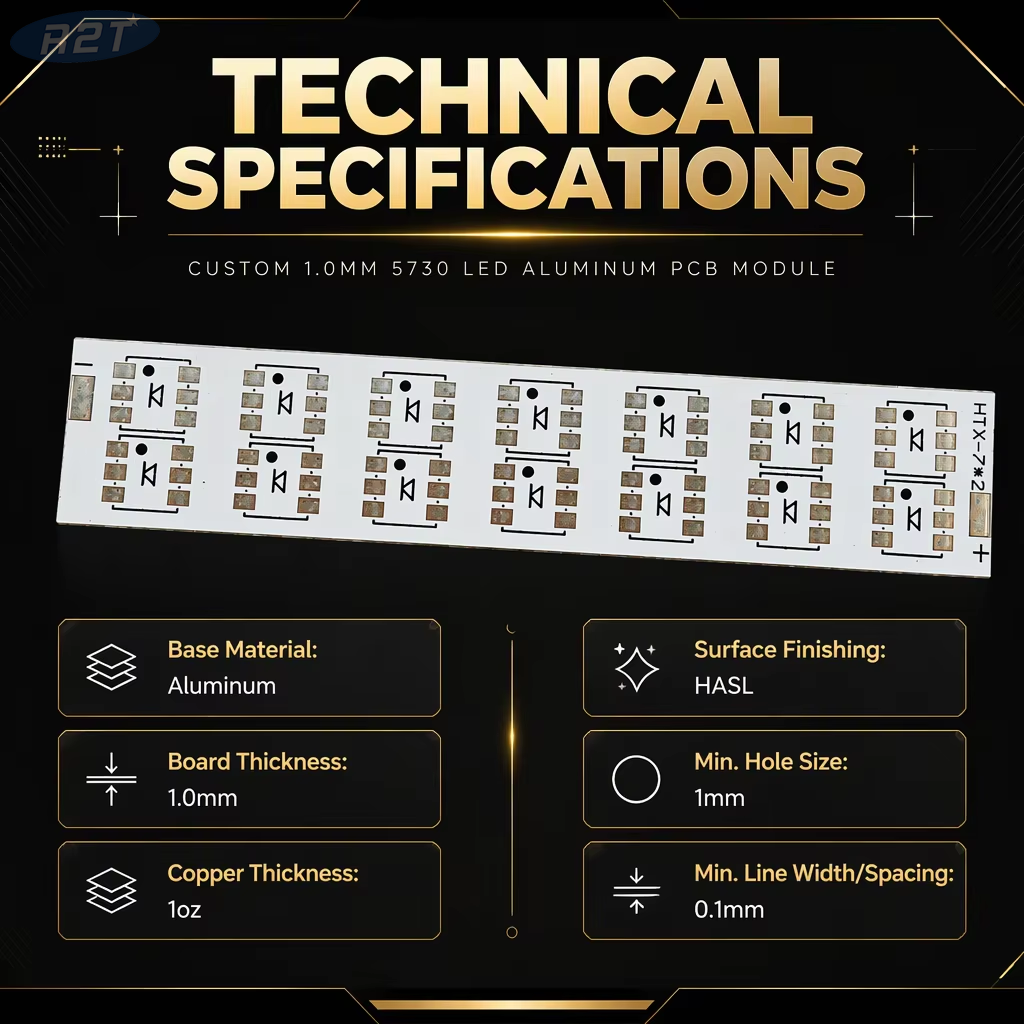

Technical Specifications
PCB Type: Aluminum MCPCB
Board Thickness: 1.0 mm
LED Package: SMD 5730
Circuit Structure: 10 Series × 6 Parallel
LED Quantity: 60 positions per module
Reference Module Size: Approx. 35 mm × 120 mm
Power Input: Single-end DC input
Polarity Marking: “+” and “-” silk screen
Surface Finish Options: White solder mask, HASL, ENIG
Customization: Size, copper thickness, layout, voltage, panelization
Note: The reference size is based on typical 5730 LED pad spacing and the observed board layout. Final dimensions should be confirmed by Gerber files or engineering drawings.
Why Choose This 5730 Aluminum PCB?
Better heat dissipation than FR-4
Aluminum PCBs are widely used in LED lighting because they help reduce junction temperature and improve long-term reliability.
Optimized for SMD 5730 modules
The 10S6P layout fits common constant-current driver designs and supports uniform current distribution across the LED array.

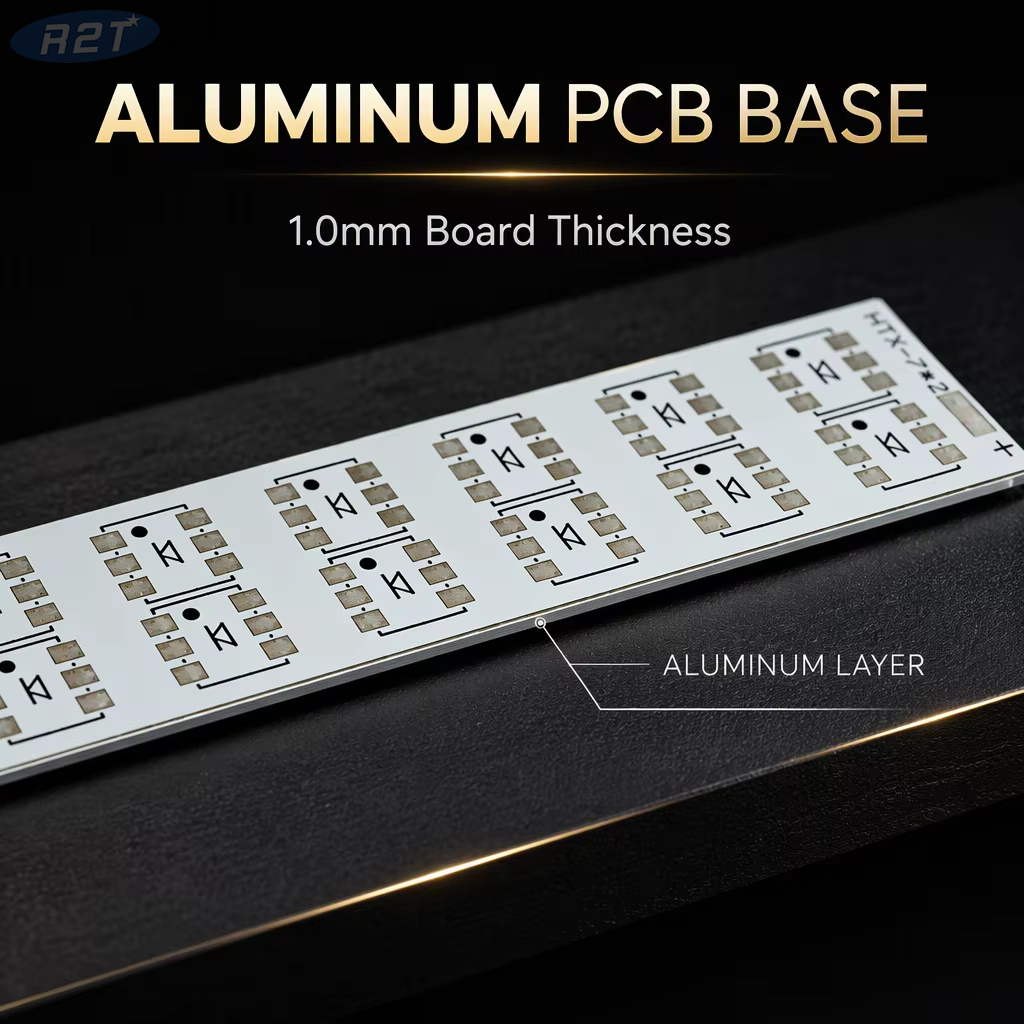

Slim 1.0mm structure
The thin aluminum base is suitable for compact light bars, backlit signs, and fixtures with tight housing constraints.
Assembly-friendly design
Clear polarity marks and standardized pad layout help improve SMT efficiency and reduce wiring mistakes.
OEM/ODM ready
We support custom PCB size, copper thickness, surface finish, circuit design, and panelization for different lighting applications.
H2：Typical Applications
LED rigid light bars
Advertising signs and light boxes
LED panel lights and downlights
Commercial display and cabinet lighting
LED module manufacturing and PCBA assembly
Manufacturing & Compliance
Aluminum MCPCB with thermally conductive dielectric layer
RoHS / REACH compliant material options available
CE / UL certification can be supported for finished products upon request
Compatible with standard SMT reflow processes
FAQ
Q1: Does this product include SMD 5730 LEDs?
No. This is a bare aluminum PCB. LEDs, resistors, connectors, and other components are not included unless you request PCBA assembly.
Q2: What does 10S6P mean?
It means the LEDs are arranged in 10 series groups and 6 parallel branches. Each module has 60 LED positions in total.
Q3: What is the board size?
The reference size is approximately 35mm × 120mm per module. Please confirm the final size based on your Gerber file or actual sample.

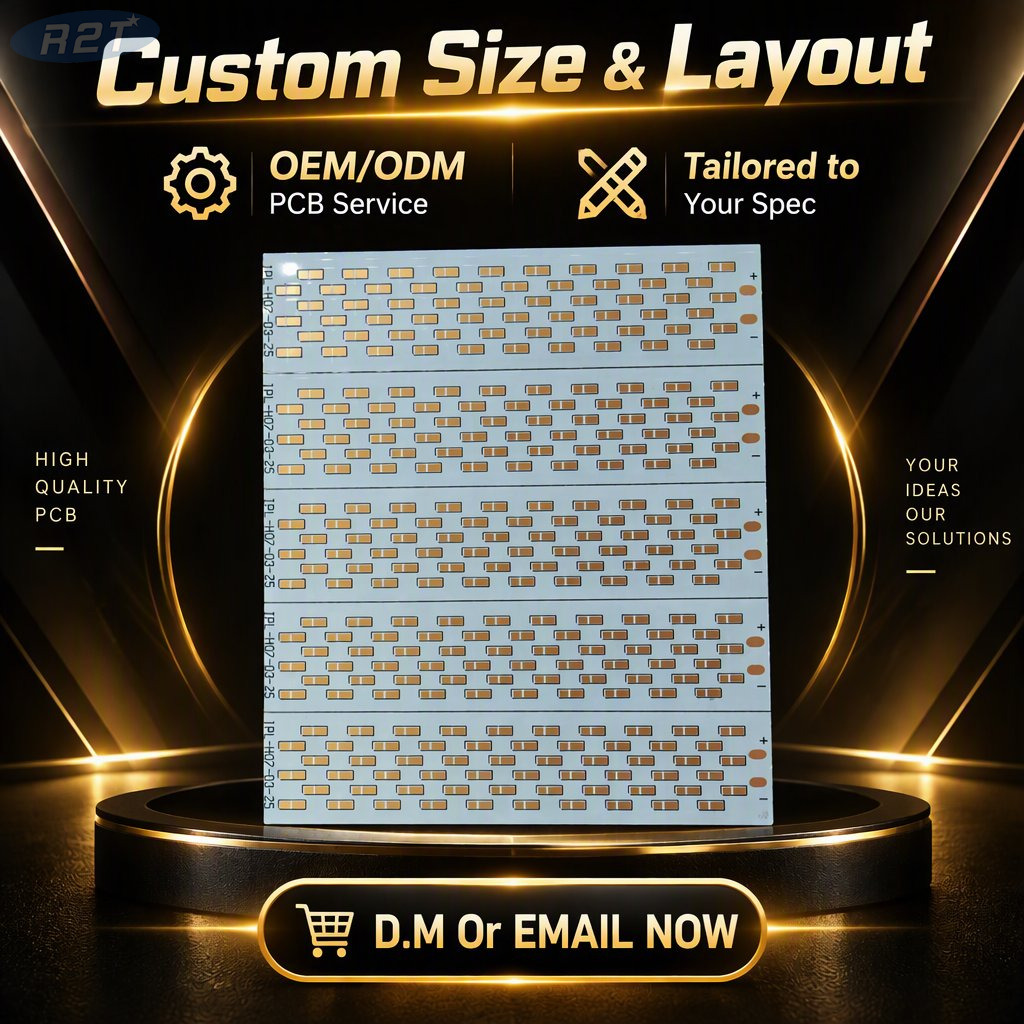

Q4: Can you customize the size and circuit layout?
Yes. We support custom dimensions, copper thickness, pad layout, voltage design, surface finish, and panelization.
Q5: What surface finish options are available?
Common options include white solder mask, HASL, and ENIG. The best choice depends on your SMT process and environmental requirements.
Q6: Is this PCB waterproof?
The bare PCB itself is not waterproof. Waterproof performance depends on the final housing, potting, coating, or IP-rated assembly.
Q7: What driver type is recommended?
A constant-current LED driver matched to the 10S6P circuit is usually recommended. The exact voltage and current should be confirmed according to the selected 5730 LED specifications.
Q8: What is the MOQ and lead time?
MOQ and lead time depend on quantity, customization, and surface finish. Samples are typically available within 3–7 days, and mass production within 7–15 days after confirmation.
