20W-1ft led tube board
r2t
Overview

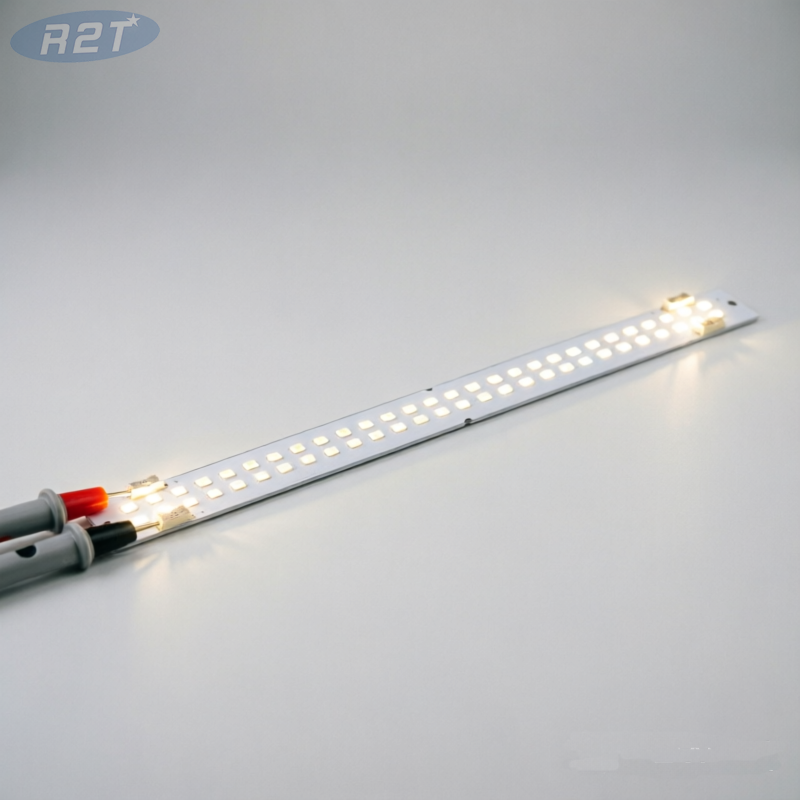

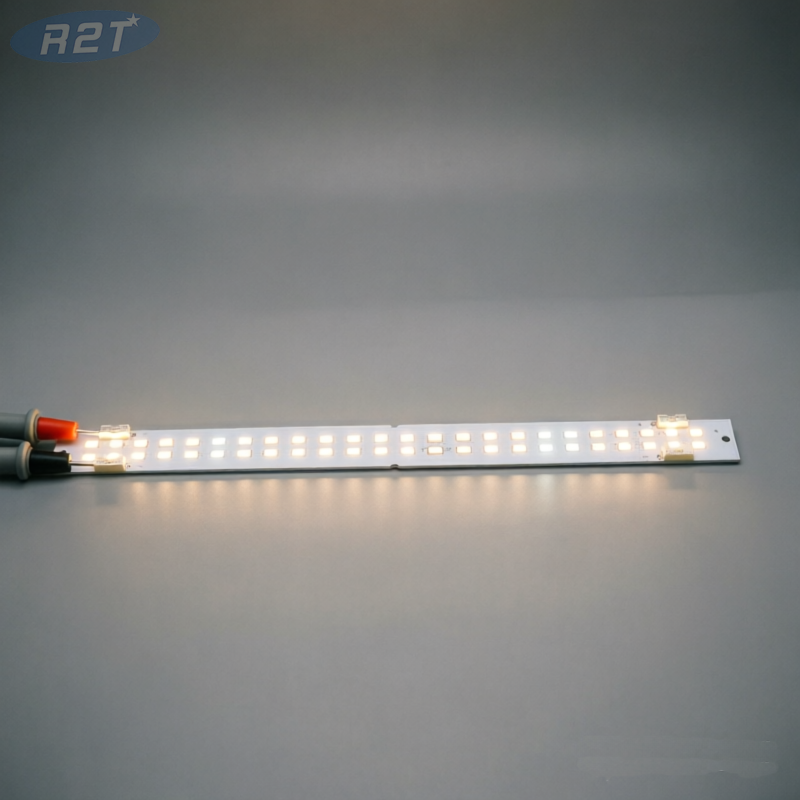

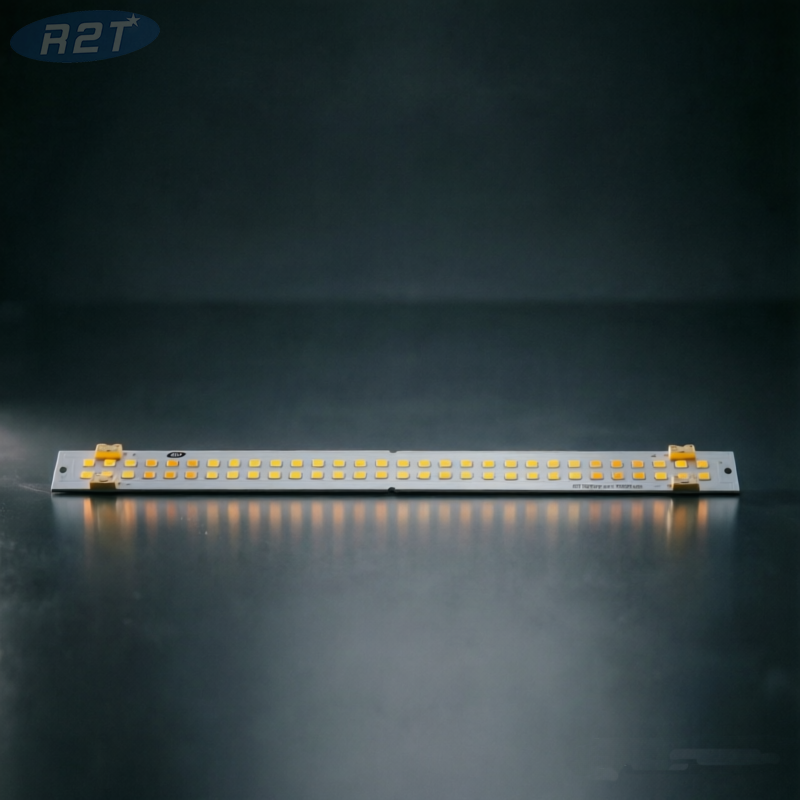

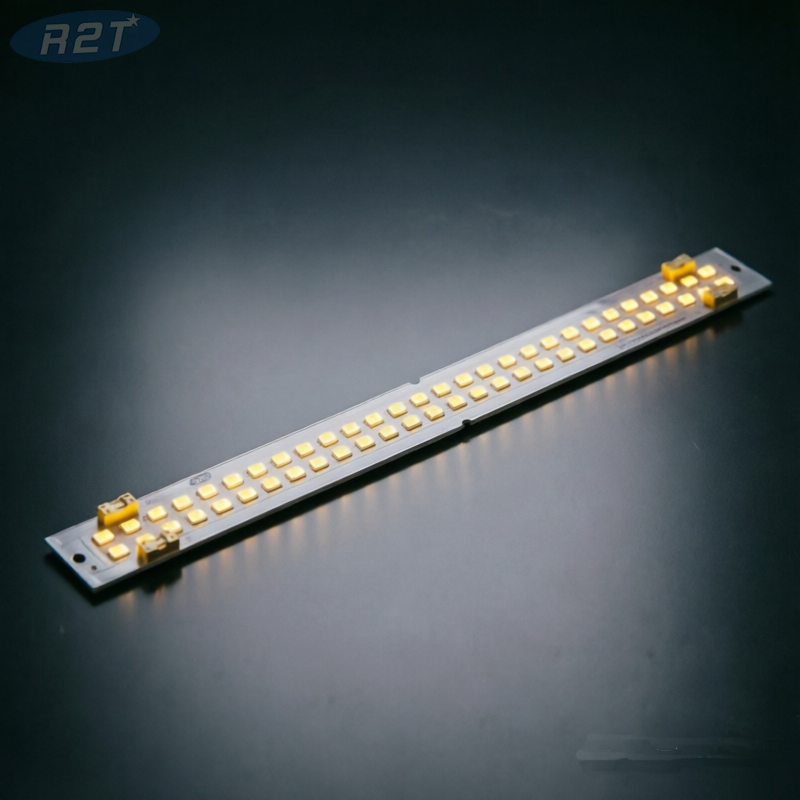

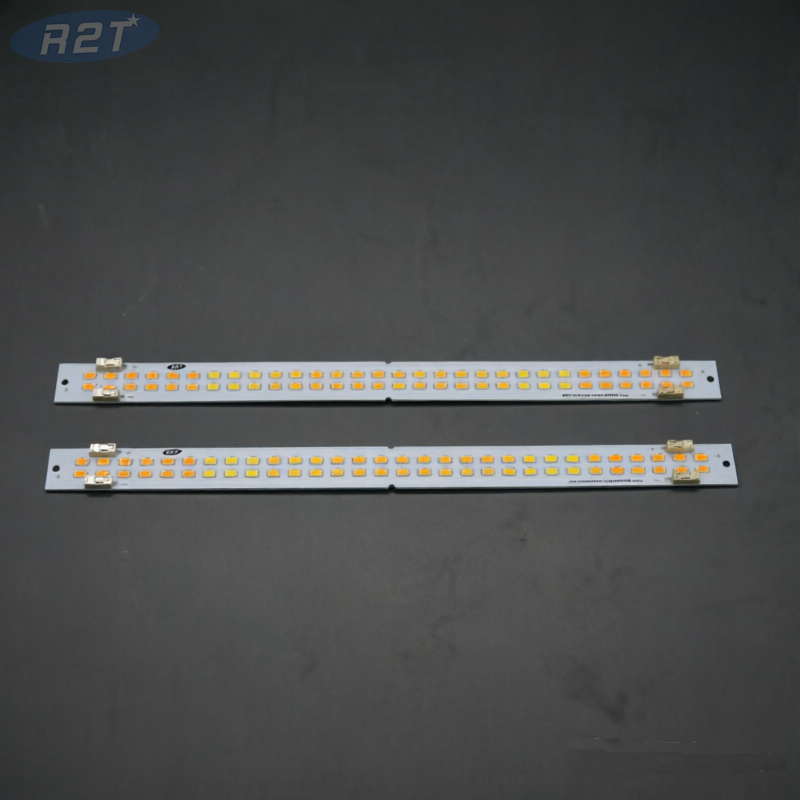

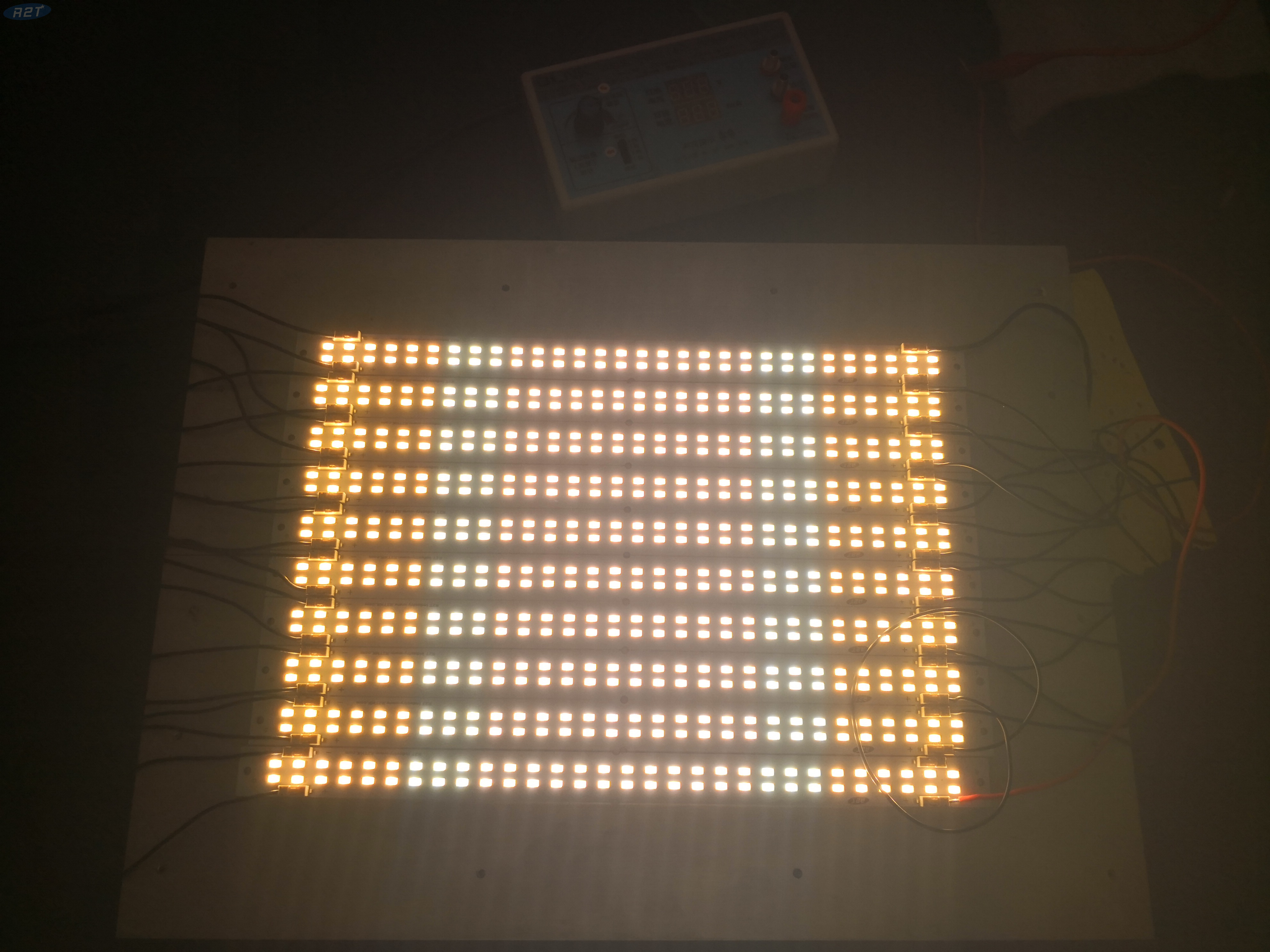

The 20W Linear LED Module PCBA is a high-efficacy, heavy-duty light engine engineered for high-performance commercial and linear architectural luminaires. Measuring 300mm × 20mm × 2mm, this rigid aluminum board incorporates 60 pieces of premium Samsung 561C LEDs arranged in a 10-series / 6-parallel (10S6P) circuit layout. Operating on a 26–36V DC constant current (300mA) supply, it features a heavy 2oz copper foil and 2.0 W/m·K thermal dielectric layer for optimal heat dissipation and ultra-low thermal resistance. Equipped with 4 single-pin push-in connectors, it ensures solderless, rapid wire interconnection for OEM/ODM fixture manufacturers.
Product Technical Specifications Table
Parameter Category | Technical Specification | Engineering Values / Standards |
Product Type | Linear Light Engine | Rigid Aluminum LED Module PCBA |
Physical Dimensions | Board Size | 300mm (L) × 20mm (W) × 2.0mm (H) |
Net Weight | Unit Weight | 35g ± 3% |
LED Emitter Spec | Chip Brand & Model | Samsung LM561C (Mid-Power 5630/561C) |
LED Quantity | 60 LEDs per module | |
LED Brightness Bin | S6 Bin (High Luminous Efficacy) | |
Color Temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K | |
Color Rendering Index | CRI ≥ 80 | |
Electrical Input | Nominal Power | 30W Max |
Circuit Topology | 10 in Series, 6 in Parallel (10S6P) | |
Forward Voltage Range | DC 26V - 36V | |
Drive Current | 300mA Constant Current | |
Substrate & Hardware | PCB Material | Aluminum Core PCB (MCPCB) |
Surface Finish | HASL (Hot Air Solder Leveling) | |
Copper Layer | 2 oz (70µm) Heavy Copper | |
Thermal Conductivity | 2.0 W/m·K Dielectric Layer | |
Connector Interface | 4pcs Single-Pin Push-In Terminals (Solderless Connection) | |
Customization (OEM/ODM) | Manufacturing Support | Custom PCB Gerber layout, CCT tuning, wire harness, optics matching |
Key Technical Advantages
Premium Samsung 561C S6 Bin LEDs: Packed with 60 high-efficiency Samsung 561C SMD LEDs, achieving outstanding lumen-per-watt performance, high color uniformity, and excellent long-term color stability.
Heavy 2oz Copper & 2.0 W/m·K Thermal Base: Built with 2.0mm thick aluminum board featuring 2oz thick copper foil and 2.0 W/m·K thermal conductivity, rapidly dissipating junction heat ($T_j$) to prevent light decay and extend operational lifespan ($>50,000\text{ hours}$).
Solderless Fast Wiring System: Pre-assembled with 4 single-pin push-in connectors, allowing quick plug-and-play wiring between modules in continuous linear runs without requiring manual soldering on the assembly line.
Optimized 10S6P Circuit Architecture: Operating at DC 26-36V / 300mA, the 10-series 6-parallel topology balances power distribution across all 60 chips, maximizing driver efficiency and fixture reliability.
Full CCT Spectrum Available: Available in warm to cool color temperatures (2700K, 3000K, 3500K, 4000K, 5000K, 6500K) with CRI 80+ for versatile commercial lighting applications.
applications & Fixture Compatibility
Commercial Architectural Lighting: Linear pendant lights, recessed office troffers, and perimeter cove lighting.
Industrial & Retail Illumination: Supermarket trunking systems, shelf lighting, and LED batten fittings.
Custom OEM/ODM Luminaire Design: Ideal drop-in replacement engine for luminaire manufacturers designing low-profile linear fixtures.
Q&A:
Q1: What LED driver specifications are required for this 30W linear PCBA board?
A: This module requires a constant current LED driver delivering 300mA with an output voltage window covering DC 26V to 36V (approx. 30W output per board).
Q2: How do the 4 single-pin connectors work on this 300×20mm module?
A: The board includes 4 surface-mounted single-pin push-in terminals (typically 2 for positive/negative input and 2 for pass-through daisy-chaining). They accept solid or tinned stranded wires without manual soldering, significantly reducing labor time during luminaire assembly.
Q3: Can this 300x20mm PCB layout be customized for different dimensions or LED brands?
A: Yes. As a custom LED PCB & PCBA manufacturer, we can adjust the aluminum board dimensions, change connector locations, modify circuit series/parallel ratios, or substitute LEDs with other brands (e.g., Cree, Lumileds, Bridgelux, Sanan) based on your OEM requirements.
